Laser measurement machine
2. Real-time Data Tracing
3. Fully Automatic

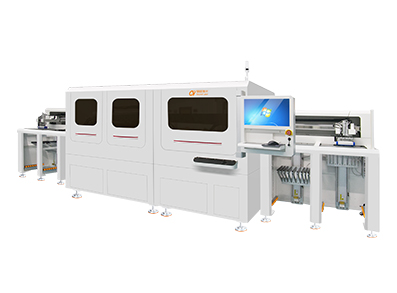

This thickness laser measurement machine can be used for area detection within 410x310 mm, with a plate thickness of about 1.0-6.0mm.
It can automatically detect online, automatically determine and sort out defective products, automatically save detection data and implement CPK analysis to ensure that data is not lost, quality is guaranteed, non-contact detection, avoid scratches on the board surface, and almost no visible consumable loss.
1. Fast Measurement Speed

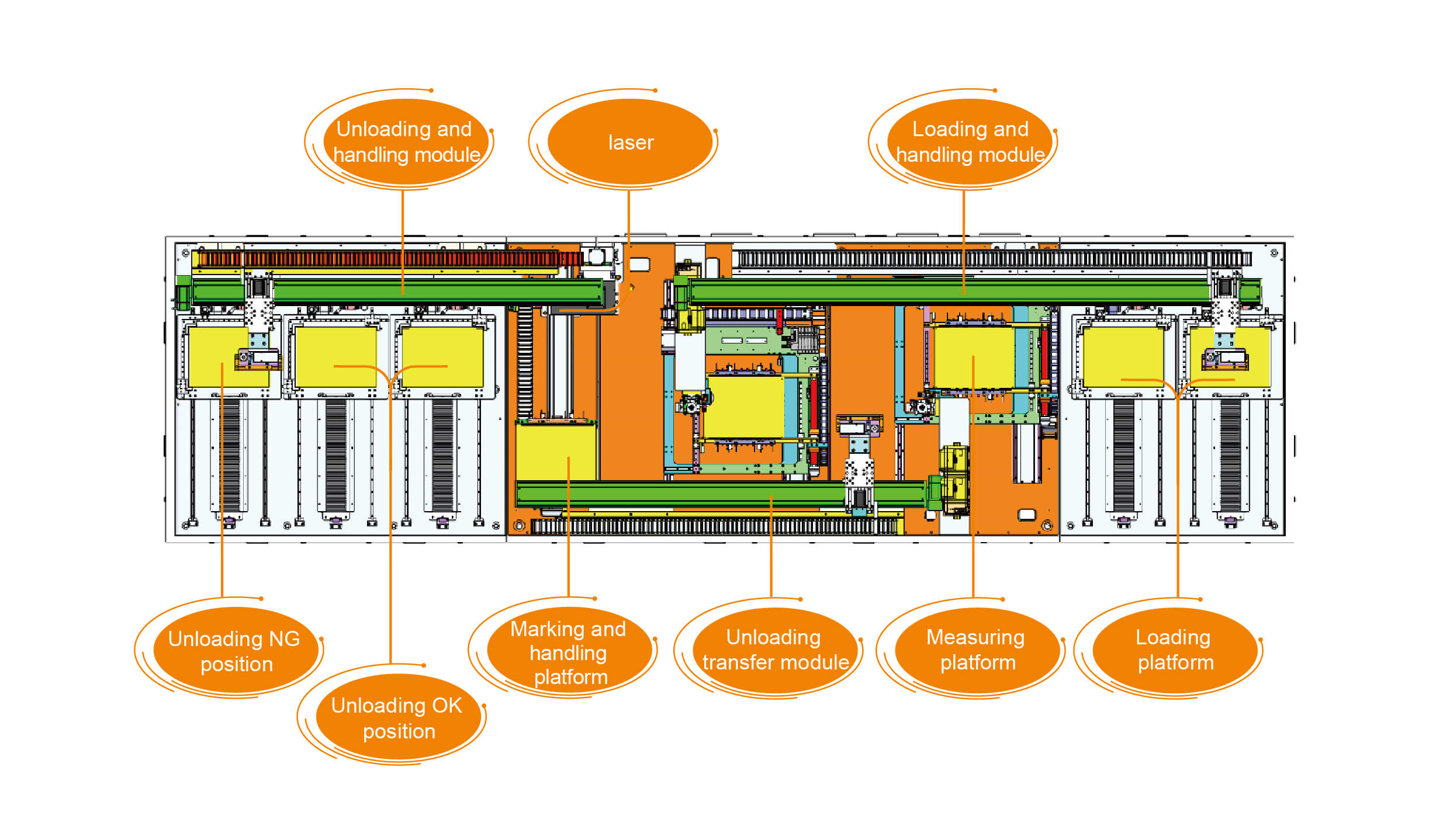

The dual measuring heads work independently and share the structure mode of loading and unloading to maximize the effectiveness of the measuring heads and improve work efficiency
2. Real-time Data Tracing
Qualified products or defective products are laser-marked with QR codes, and the measurement data is uploaded in real time to facilitate process data tracing.
3. Fully Automatic
Using non-contact, measuring according to customer-supplied coordinates, avoiding scratches on the board surface, automatic online detection, and automatic determination and sorting out defective products.
Item | Specification | Item | Specification |
Machine size | 1420*2010*1850mm | Maximum detection area | 410 x 310 (mm) |
Working direction | Facing the operating surface from right to left | Production board thickness | Up and down shooting (2 groups) |
Production board size | MIN:100x100(mm) MAX:410x310(mm) | Worktable positioning accuracy | 3000 kg |
Production board thickness | MIN:1.0mm MAX:6.0mm | Laser power | 5W |
Excess thickness range | 0.1-2(mm) | Laser wavelength | 355nm |
Measurement accuracy | ±2μm | Cooling method | Air cooling |
Production capacity | 30S/SET | Measurement data CPK calculation | With |
Working mode | Two sets of measuring heads work alone | QR code reading function | With |
Marking function | Laser coding | Loading and unloading method | Adsorption loading and unloading |
Number of thickness measuring heads | 2 Sets | Loading position | Two places |
Reference distance | 30mm | Unloading position | Three places |

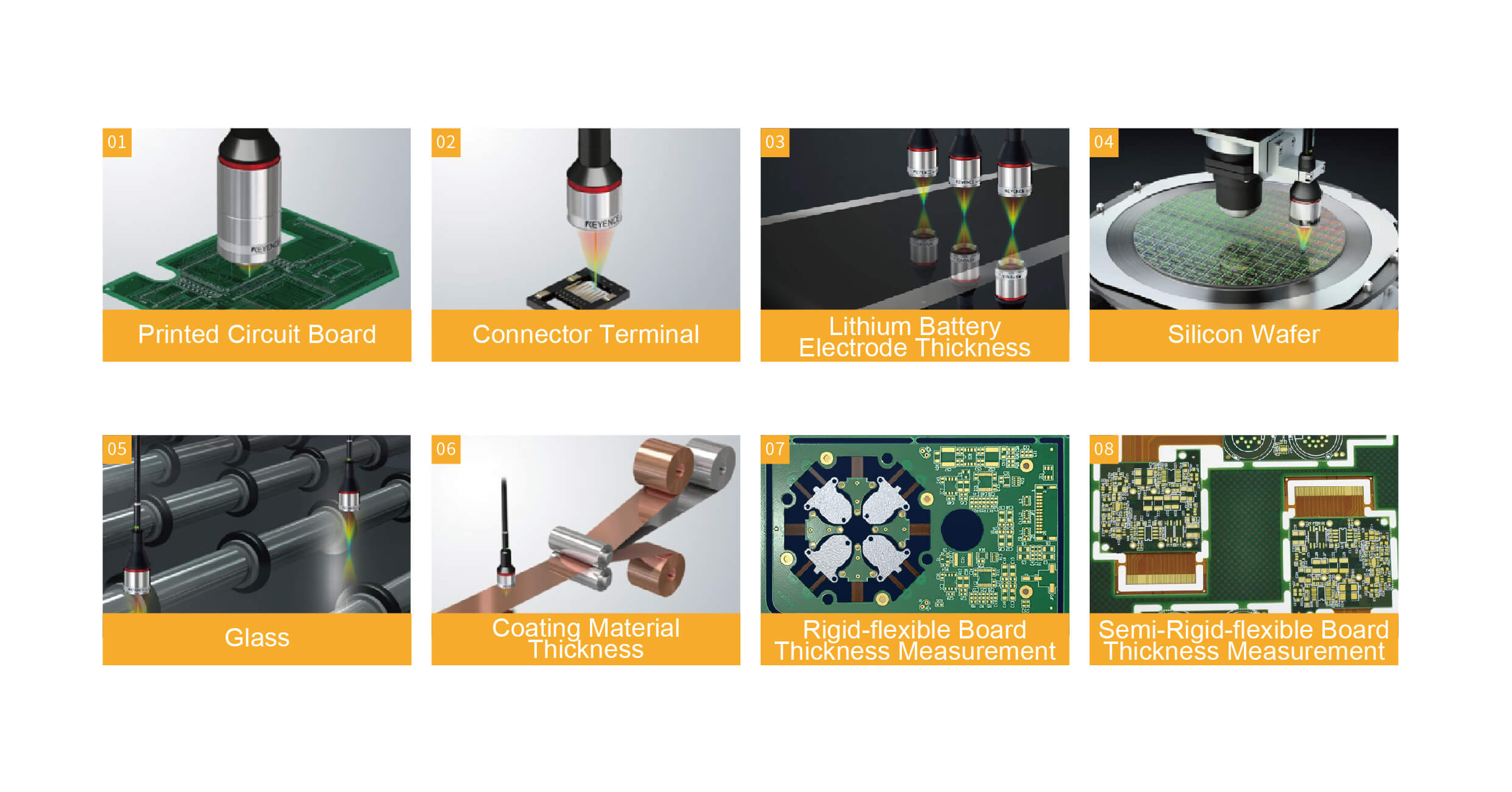

It can be applied to measuring various materials such as rigid-flexible boards, semi-rigid-flexible boards, hard boards, HDI, ceramic boards, glass, metals, die-cut films, etc., and is the best solution for the detection and classification of PCB substrates of various thicknesses.
