PCB circuit board, also known as printed circuit board, is a provider of electrical connections for electronic components.
It has a history of more than 100 years.
The industrial output value accounts for about a quarter of the total output value of electronic components.
In various electronic component industry segments, the proportion is large, and flexible PCB board (FPC) is one of the fastest growing sub-industries in the PCB industry.
Its design is mainly layout design; the main advantage of using circuit boards is to greatly reduce wiring and assembly errors, and improve the level of automation and production labor rate.
As an important electronic connector, PCB is used in all electronic products and is considered the mother of electronic system products.
Whether it is large machinery or personal computers, communication base stations or mobile phones, household appliances or electronic toys, printed circuits are used. circuit board.
Today, with the rapid development of science and technology, the rapid development of integrated circuit technology and electronic information products has also driven the continuous progress of printed circuit board technology.
Printed circuit boards have gradually developed from single-sided to double-sided, multi-layer and soft and hard boards.
The arrival of the current 5G era has further led the development of high-precision, high-performance, and highly stable circuit board technology for electronic products.
-
It is used to mark QR codes and one-dimensional codes on the surface of various formats in PCB/FPCB/SMT and other industries, and the characters are fully traceable and controllable. Automatic turning plate and loading, accurate positioning and efficient identification.Laser depaneling of FPC, RF boards, metal substrate, gold finger window opening, conductive layer scribing, flexible board die cutting, etc.PCB drilling can drill blind holes, through holes, substrate drilling, and ceramic drilling at high speed. It can realize flying drilling and customize RTR automatic loading and unloading.
-
Precision Marking
High-contrast, permanent markings at microscopic scales with minimal heat impact to surrounding materials. -
Precision Cutting
Suitable for cutting and forming CVL/FPC/PCB/RF and thin multi-layerboards, scribing, fully automatic large format. -

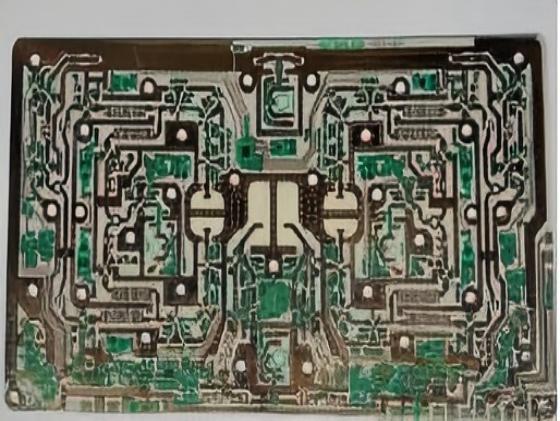

Precision Drilling
PCB drilling can drill blind holes, throughholes, substrate drilling, and ceramic drilling at high speed. it can realize flying drilling and customize Roll To Roll automatic loading and unloading.
-
1. An FPC manufacturer in Huizhou City has previously used traditional die-cutting methods to cut FPC. With the continuous upgrading of end customer products, the requirements for FPC supporting equipment are getting higher and higher, such as special-shaped requirements, multiple varieties, short delivery times, etc. In order to meet the changing needs of end customers, this CY-WX2N/P6050FPC dual-platform laser cutting machine is used. Since then, the advantages of high quality, quick response, and short delivery time have enabled their company to obtain more orders.
-
2. If the coding method of "high temperature resistant labeling" is adopted, in terms of operating costs, based on the double version, the monthly production capacity of 3-4 production lines is about 200,000 pieces. For example, if we put a 40mm*6mm high-temperature label on each circuit board, the monthly fixed cost is at least 60,000 yuan, and the processing cost of multi-connected boards will increase exponentially.
-
When using a fully automatic loading and unloading laser coding machine, we can evaluate the corresponding labor, efficiency and yield rate.
-
(a) Save labeling labor costs. (b)Save the cost of subsequent sticker consumables. (c) The processing efficiency is 10 times that of the original. (d) The yield rate is as high as 99%. (e) The identification effect can be directly traced and connected to the database.
