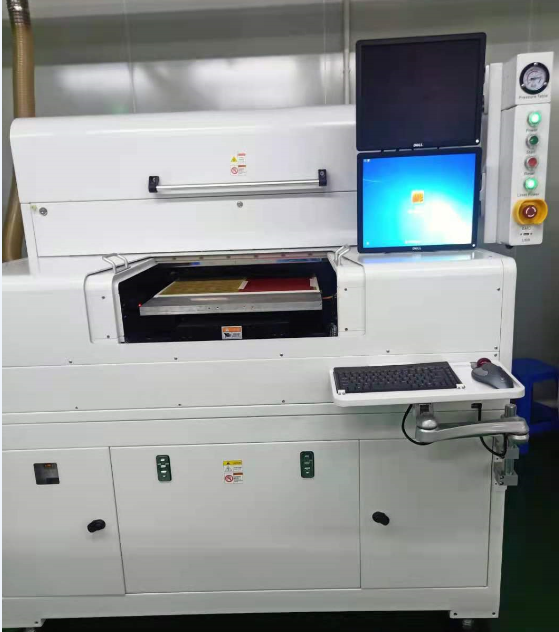

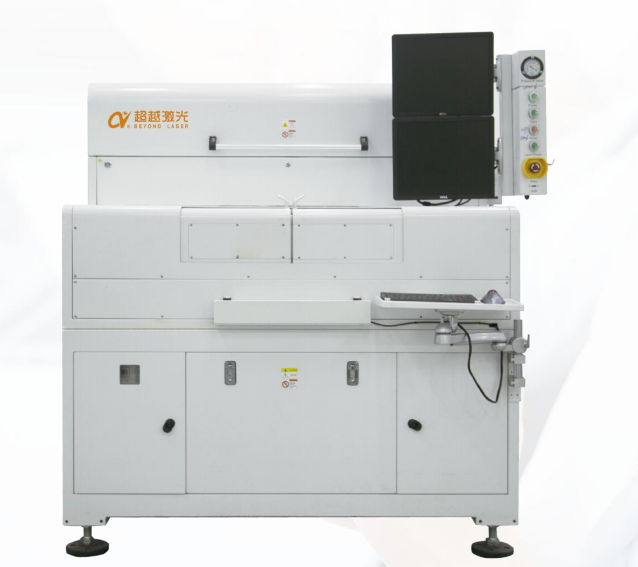

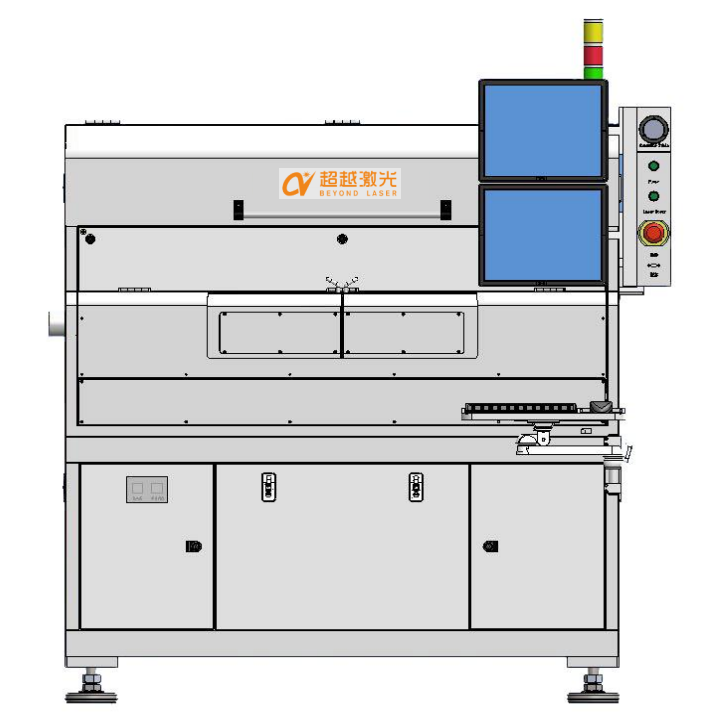

UV laser drilling machine
01 Easy Operation
Self-developed software, customized according to actual demand .
02 High Quality Laser System
High quality laser system,long lifetime; high quality servo motor and control system.
03 Automaton System
With automatic power detecting and correction function, automatic measurement of material thickness, automatic achieving DOF.
04 Effect Quality
X.Y axis can reach 1200mm/sec for high precision and high speed drilling, perfect drilling effect.
05 Precision Drilling

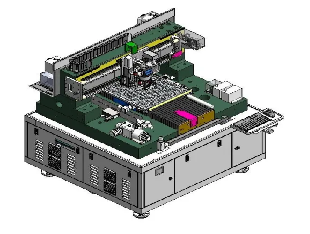

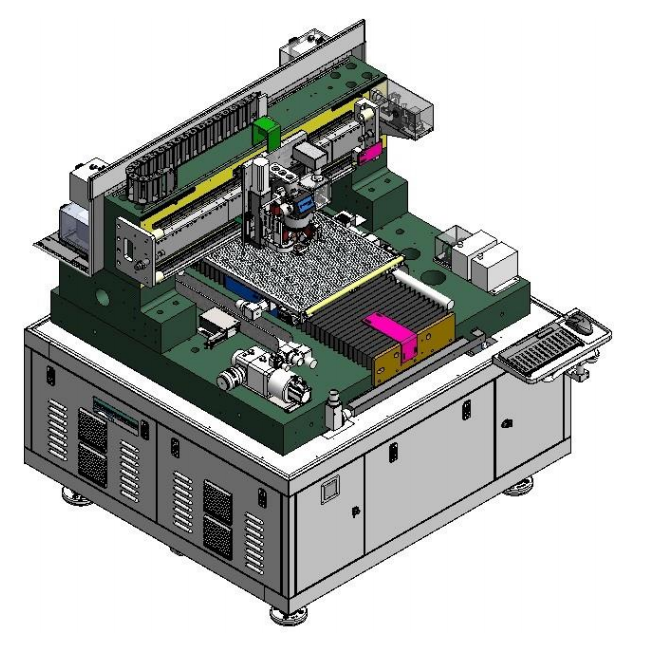

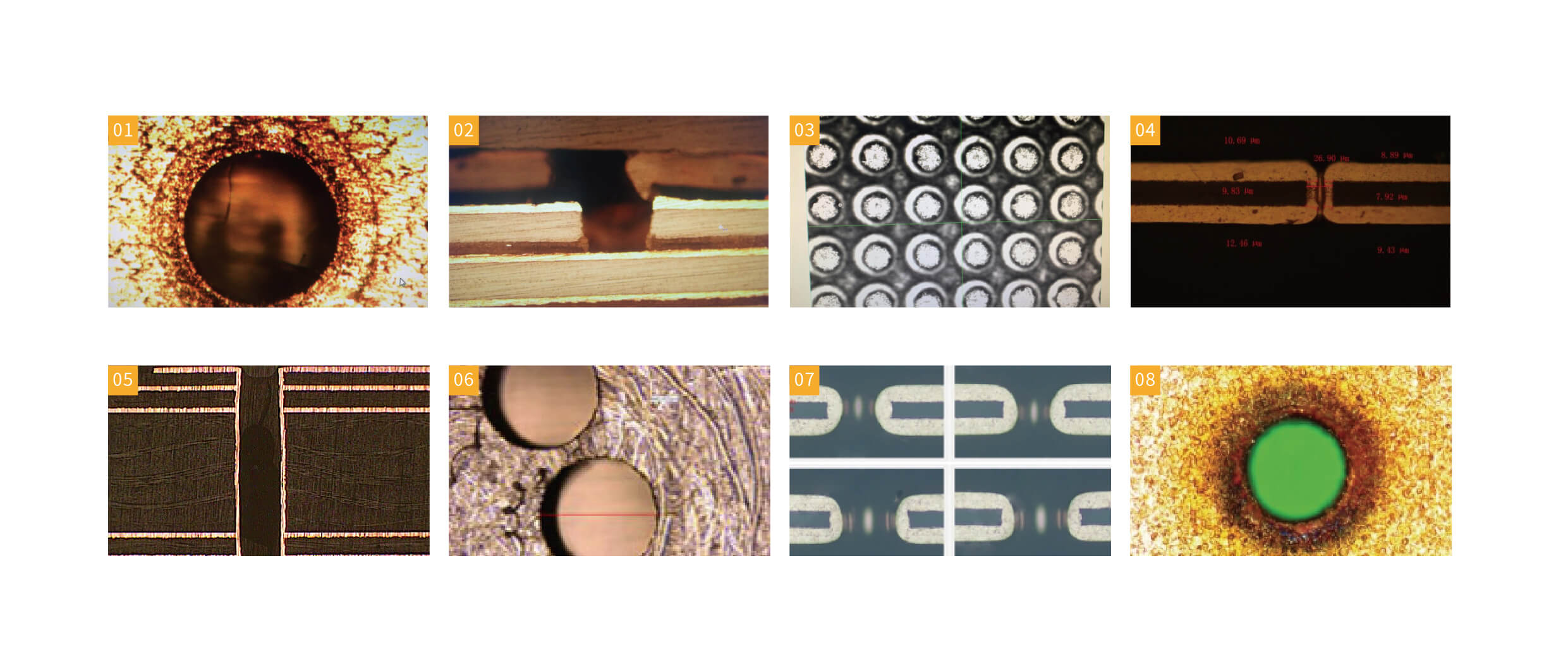

Using high energy laser beam for micro drilling, high accuracy, fine cutting edge, high excellent rate.
06 Safety And Environmental
Non-touch processing, safety and environmental, high processing efficiency, suitable for numerous group hole processing.
Item | Specification | Item | Specification |
Applicable products | FPCB Panel (0.05t~4.0t) | Electric power supply | AC 380V |
Machine size | 1600x1500x1750mm | Air pressure | 0.5~0.8 MPa |
Net weight | 2500kg | Laser type | uv laser |
Maximum processing size | 550x650mm | Average power | 11W @40kHz |
Processing method | SINGLE/ROLL TO ROLL | Pulse frequenc | 40-90 kHz optimized |
Travel type | four-axis linkage | Mark point | 2 or more |
Speed | 600mm /s | Mark size | 0.08mm～0.7mm |
Laser power | 12w | Hole diameter | ≥50μm |
Laser spot | 20μm | Warming up | 20min |
Laser pulse frequency | 40-90 kHz optimized | Worktable structure | Marble |
Position accuracy | ≤10μm | Panel fix | Vacuum |
Apply for FPCB industry, suitable for FPCB PTH, BVH drilling, laser micro drilling of single layer board, double layer assembly board, mutil-layer board, etc.
