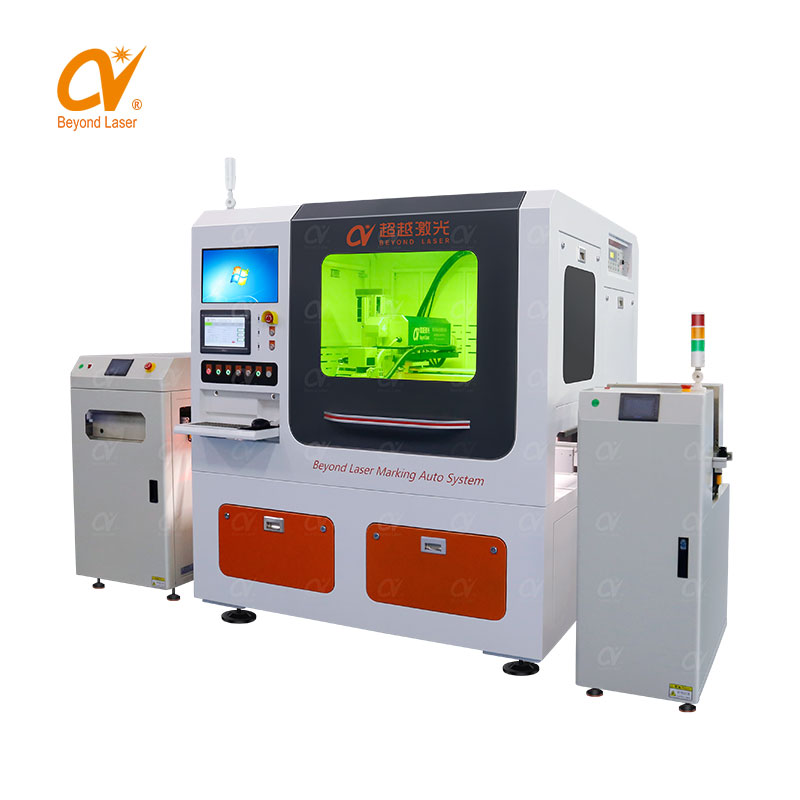

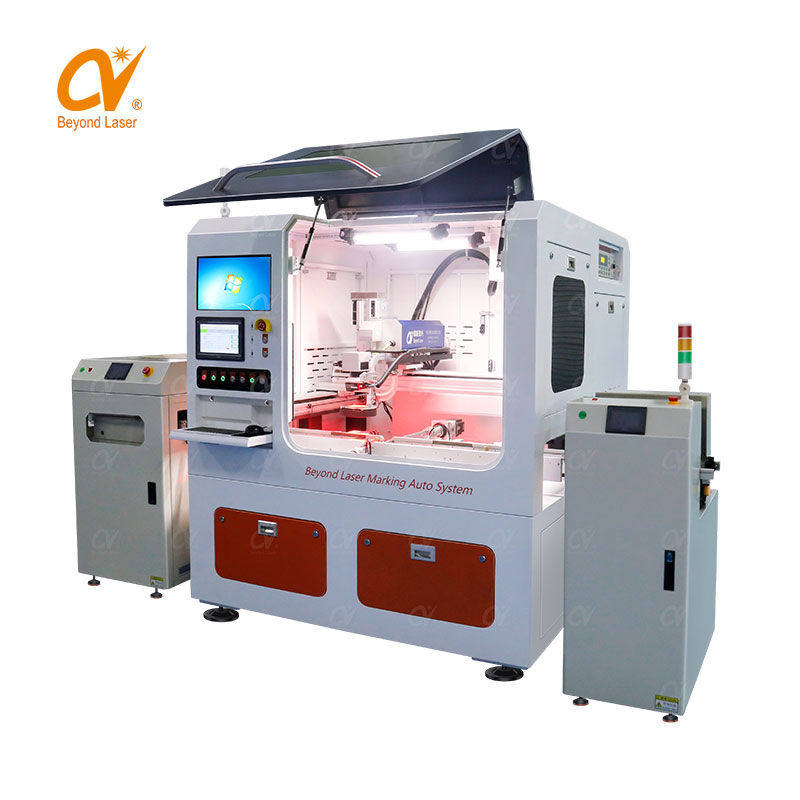

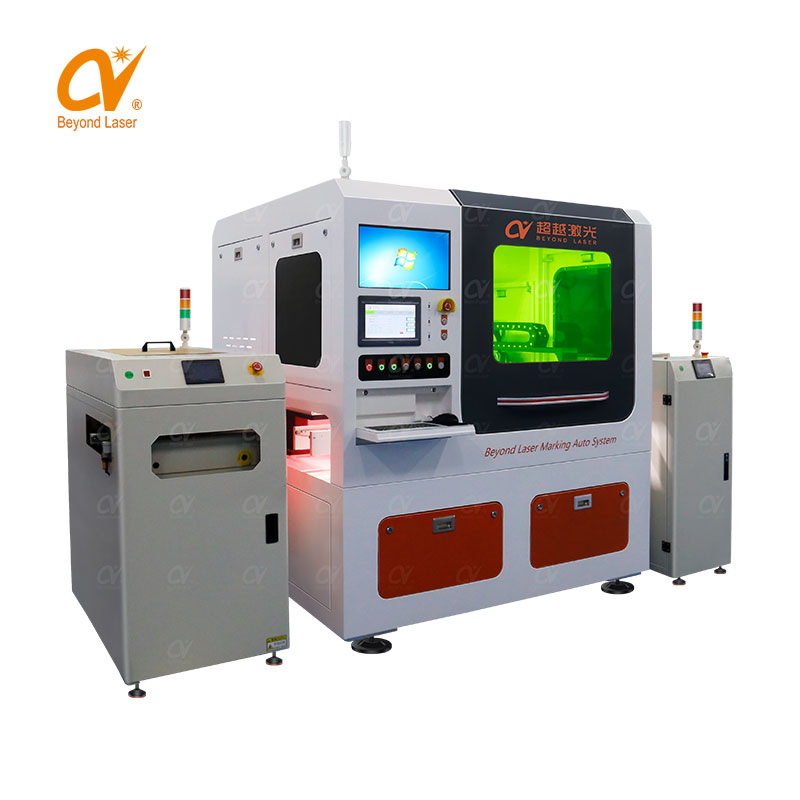

Automatic laser marking machine- 4545
The small/medium format PCB marking machine adopts track-mode automatic loading and unloading, online code reading, automatic positioning, automatic marking,and automatic flipping functions.
It able to mark front and back sides continuously, and process 450x450-0.5*0.5mm format PCB board, compatible with a variety of sizes and freely adjustable; suitable for marking on white oil white oil, green oil, black oil and other inks and copper, stainless steel, aluminum alloy PCB board marking.
1. Orbital automatic loading and unloading
Fully automatic design, orbital automatic transmission, automatic positioning, automatic coding, and less labor;
2. Automatic flip double-sided coding
New design of automatic flip function, Automatic flipping after finish one side marking, and mark the other side continuously;
3. CCD automatic positioning
Automatic scanning, Catch the alignment points for positioning on PCB, improve marking quality;
Project | Parameter | Project | Parameter |
Type | CY-MKPCB-4545 | Average output power | 3w/5w/10W |
Equipment size | L1760*W1600*H1910mm | Plate thickness | 0.05mm-5mm |
Field lens marking area | 175mm*175mm(Can be switched as required) | Coding ability | 30place ≧1.5*1.5mm |
Marking speed | (Linear marking speed reaches 7000mm/s) 7000mm/s | Power supply | 220V/50Hz/8KVA |
Accurate positioning | ±0.05mm | Gas supply specifications | 0.4-0.6MP |
Accurate repeat positioning | ±0.02mm | Environmental requirements | The temperature 15-30℃、humidity＜50％ |
Laser light source | Ultraviolet, green light,CO2, fiber | Automatic load and unload system | Vacuum adsorption system |
Visual system | (Industrial CCD positioning and code reading system;) | Automatic code reading function | Automatically read the qr code and save the data |
Minimum machining character height | 0.1mm-0.4mm(depending on laser type) | Automatic customization functions | Can be customized automatic loader and unloader |
One-dimensional code type | Code 39,Code 25, Code 39,Code 128,EAN-13, EAN-8, LSBN,etc. | Supported file format | DXF,Excel,TXT and other common file formats |
Qr code type | Data matrix,QR Code,micro QR Code,PDF417,Code 49,Code 16K ； | Automatic positioning function | Support automatic photo taking, 2 o 'clock, 3 o 'clock and 4 o 'clock positioning |
Applicable products | Size: 450*450; Thickness: 0.5mm-5mm(can be customized according to requirements); | Character type | Support True Type fonts (JSF), SHX fonts, dot matrix fonts (DMF) |
Machinable QR code size | QR code size:Minimum QR code side is 1.5mm*1.5mm (depending on the laser type); | Intelligent production function | Intelligent production function: it can be customized to connect with ERP/MES and other systems to automatically obtain information such as work order number, product batch number, material code, product name and specification and automatically code; |
PCB large format automatic laser marking machine is mainly used in PCB, FPCB, SMT and other industries;

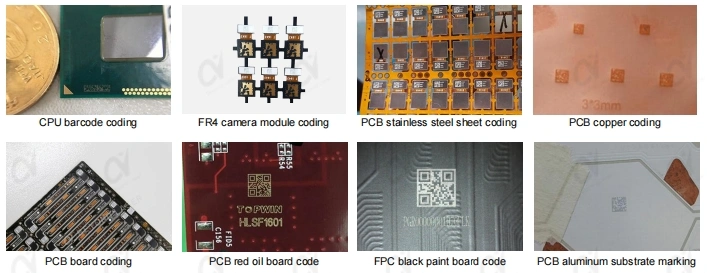

Mainly used in PCB/FPCB surface automatic marking with two-dimensional code one-dimensional code, characters.
(according to different format to choose the corresponding model), material can be white oil, green oil, black oil and other ink and copper, stainless steel, aluminum alloy surface automatic marking.
The information of raw material procurement, production process and process, product batch, manufacturer, production date, product whereabouts and other information can be automatically generated two-dimensional code, and automatically marked on the PCB/FPCB surface by laser for traceability and management of products.
