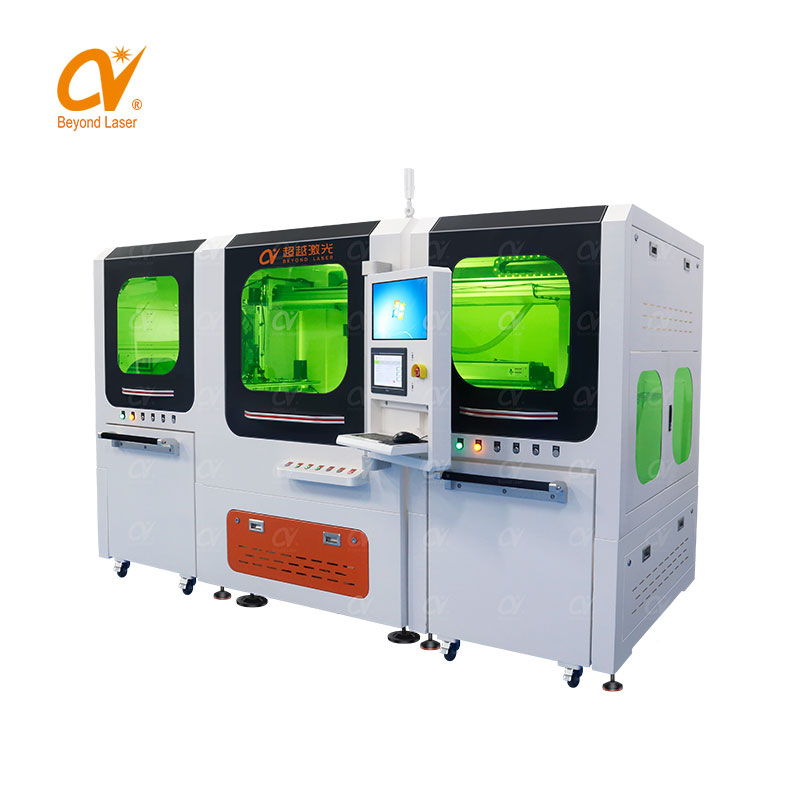

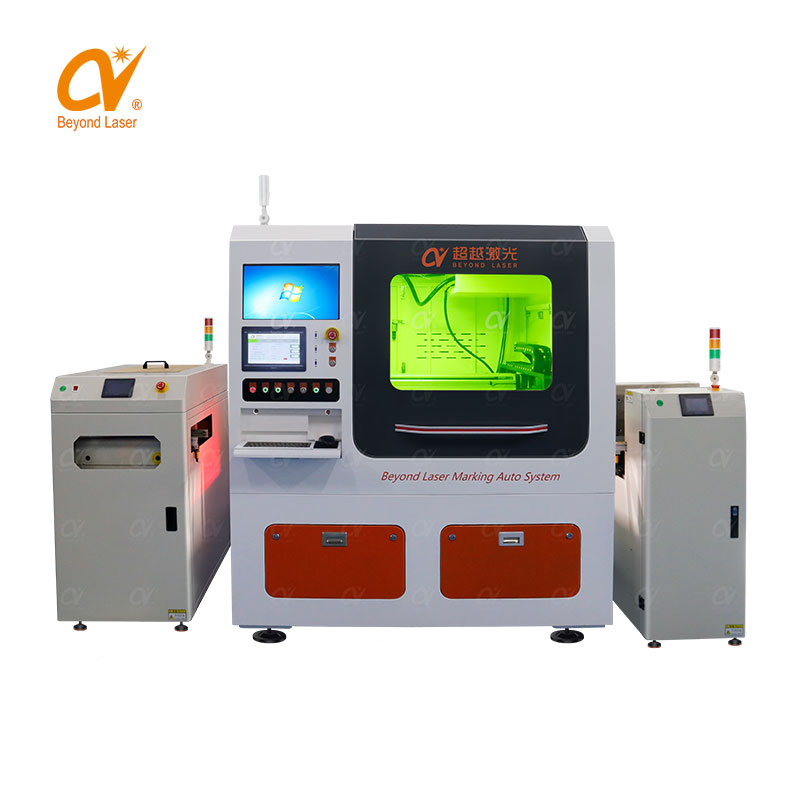

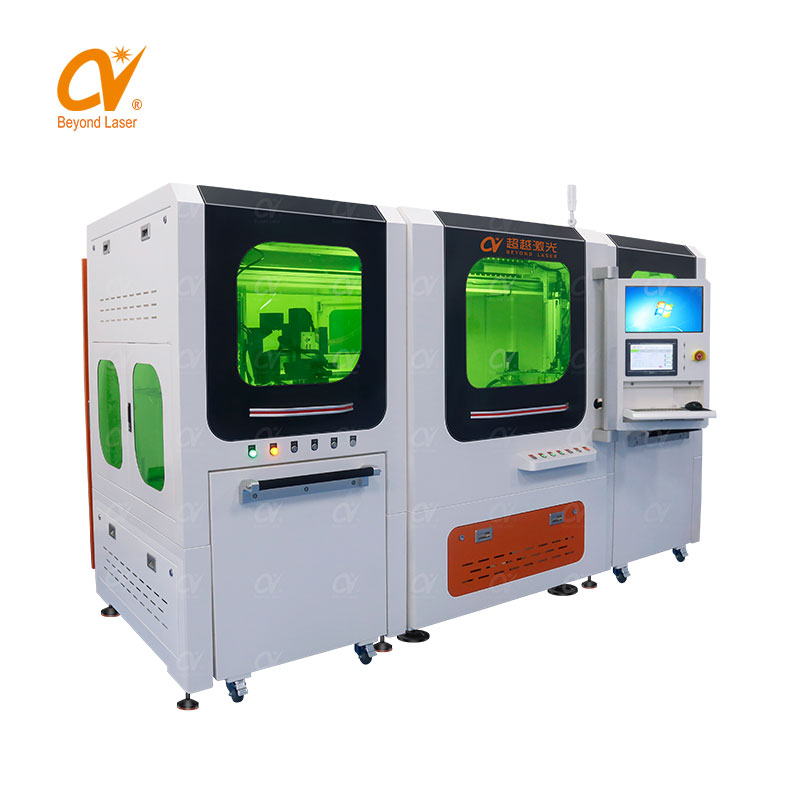

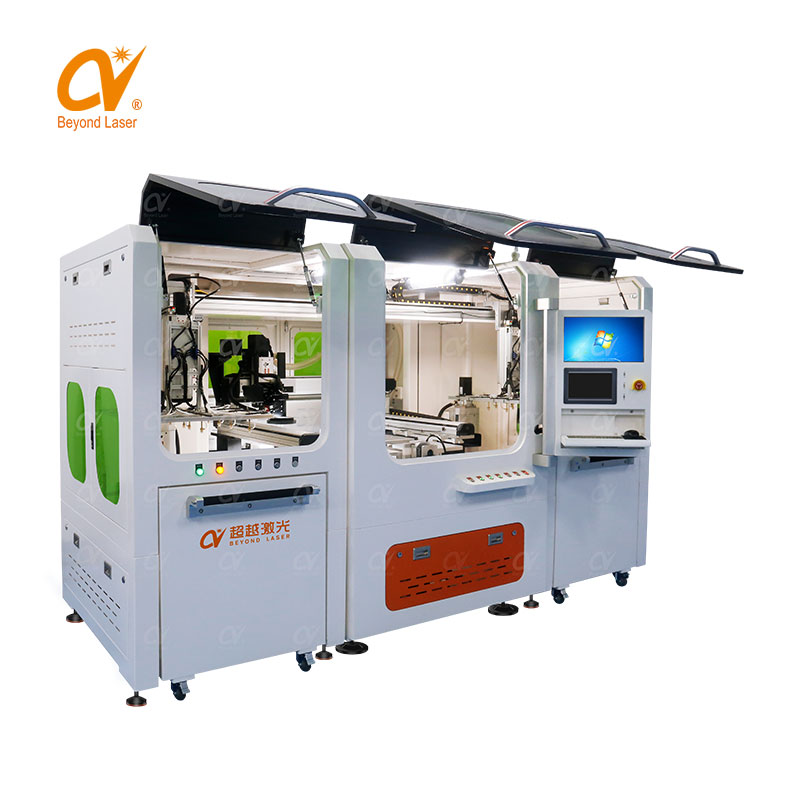

Big format laser marking machine- 7575
Big format laser marking machine for PCB industry, which can realize full automation of loading, marking, turning, unloading, and connection production; ultra-large format processing of 750x750mm PCB boards, which can mark bar codes, QR codes, characters, graphics, etc.;
Information such as raw material procurement, production process and technology, product batch, manufacturer, production date, product destination, etc. can be automatically generated into a QR code, which can be automatically marked on the PCB/FPCB surface by laser to achieve product traceability and management.
Advantage:

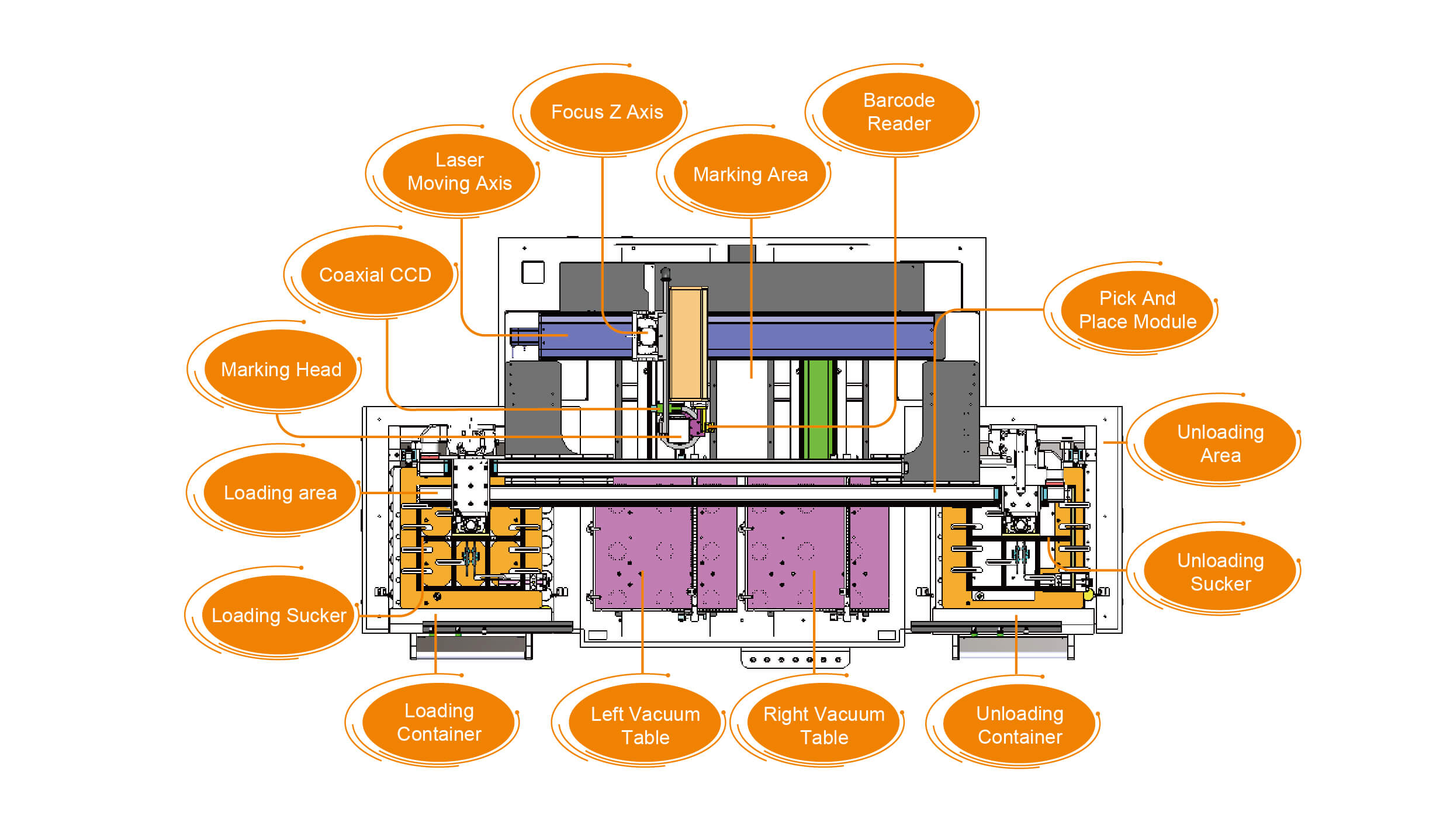

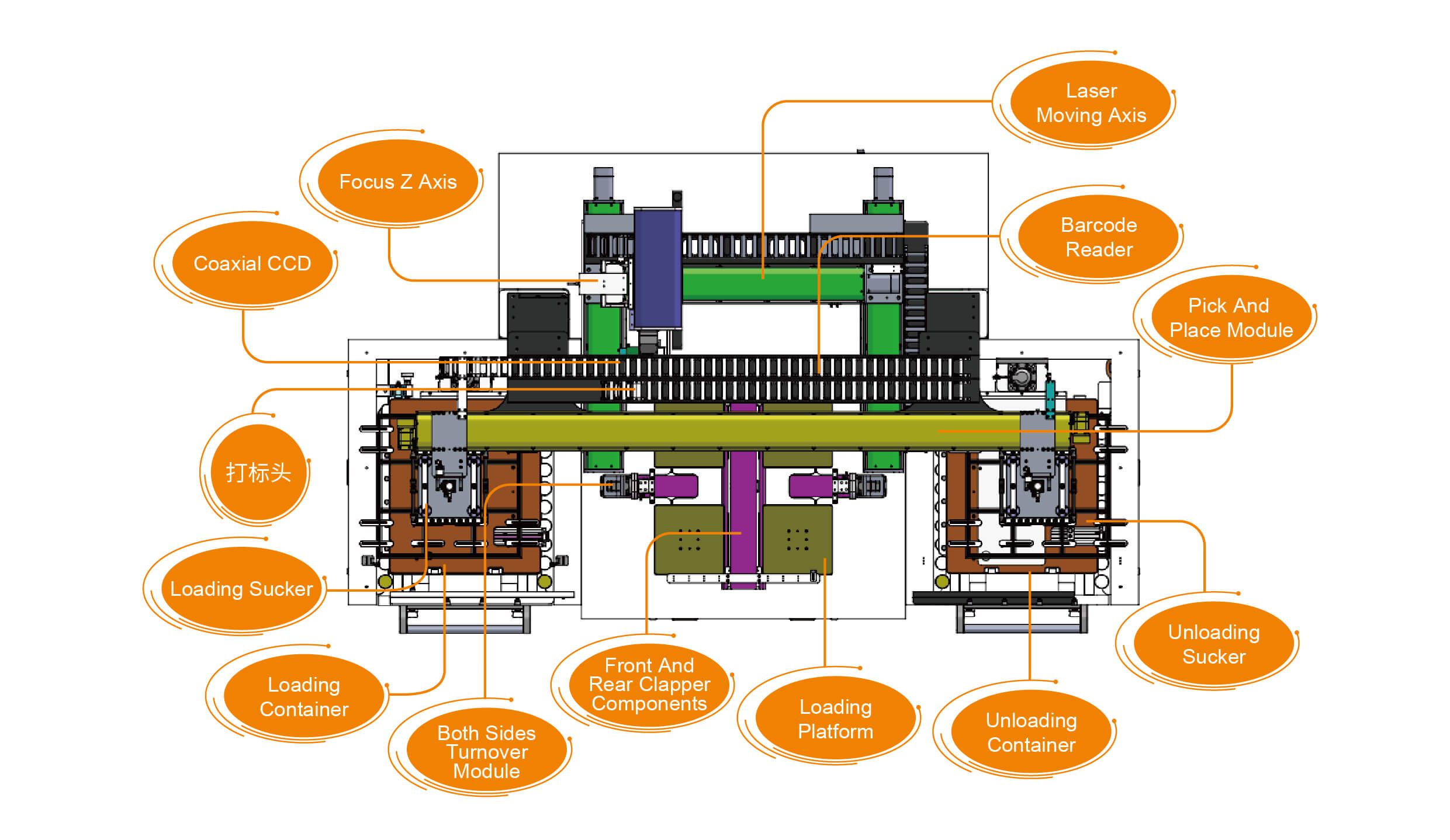

01 Automatic Flip
After marking one side, it can autocratically flip, lift-type flipping components, 750x750mm big format flipping is easily completed, double-sided marking is done continuously
02 Automatic Loading And Unloading
The manipulator in the feeding area automatically adsorbs the PCB board, grabs and moves to worktable for automatically marking. After marking it will be automatically absorbed and move to the receiving area.
03 Precise CCD Positioning
It can automatically positioning the PCB effectively, tightly adsorb the PCB platform and improve the marking quality.
Project | Parameter | Project | Parameter |
PCB processing range | CY-MKPCB-7575 | Average output power | 5W 10W 30W (optional) |
Equipment size | L3390*W2160*H1900mm/ L3750*W2170*H1900mm | Plate thickness | 0.05mm-5mm |
Field lens marking area | 175mm*175mm (Can be switched as required) | Coding ability | 30place ≧1.5*1.5mm |
Marking speed | (Linear marking speed reaches 7000mm/s) 7000mm/s | Power supply | 220V/50Hz/8KVA |
Accurate positioning | ±0.05mm | Gas supply specifications | 0.4-0.6MP |
Accurate repeat positioning | ±0.02mm | Environmental requirements | The temperature 15-30℃、humidity＜50％ |
Laser light source | UV laser , Green Laser, CO2 laser (optional) | Automatic load and unload system | Vacuum adsorption system |
Visual system | (Industrial CCD positioning and code reading system) | Automatic code reading function | Automatically read the QR code and save the data |
Minimum machining character height | 0.1mm-0.4mm(depending on laser type) | Automatic customization functions | Can be customized automatic loader and unloader |
One-dimensional code type | Code 39,Code 25, Code 39,Code 128,EAN-13, EAN-8, LSBN,etc. | Supported file format | DXF,Excel,TXT and other common file formats |
Qr code type | Data matrix,QR Code,micro QR Code,PDF417,Code 49,Code 16K | Automatic positioning function | Support automatic photo taking, 2 o 'clock, 3 o 'clock and 4 o 'clock positioning |
Applicable products | Size: less than 300*300-650*650mm; | Character type | Support True Type fonts (JSF), SHX fonts, dot matrix fonts (DMF) |
Machinable QR code size | QR code size:Minimum QR code side is 1.5mm*1.5mm (depending on the laser type) | Intelligent production function | Intelligent production function: it can be customized to connect with ERP/MES and other systems to automatically obtain information such as work order number, product batch number, material code,product name and specification and automatically code. |

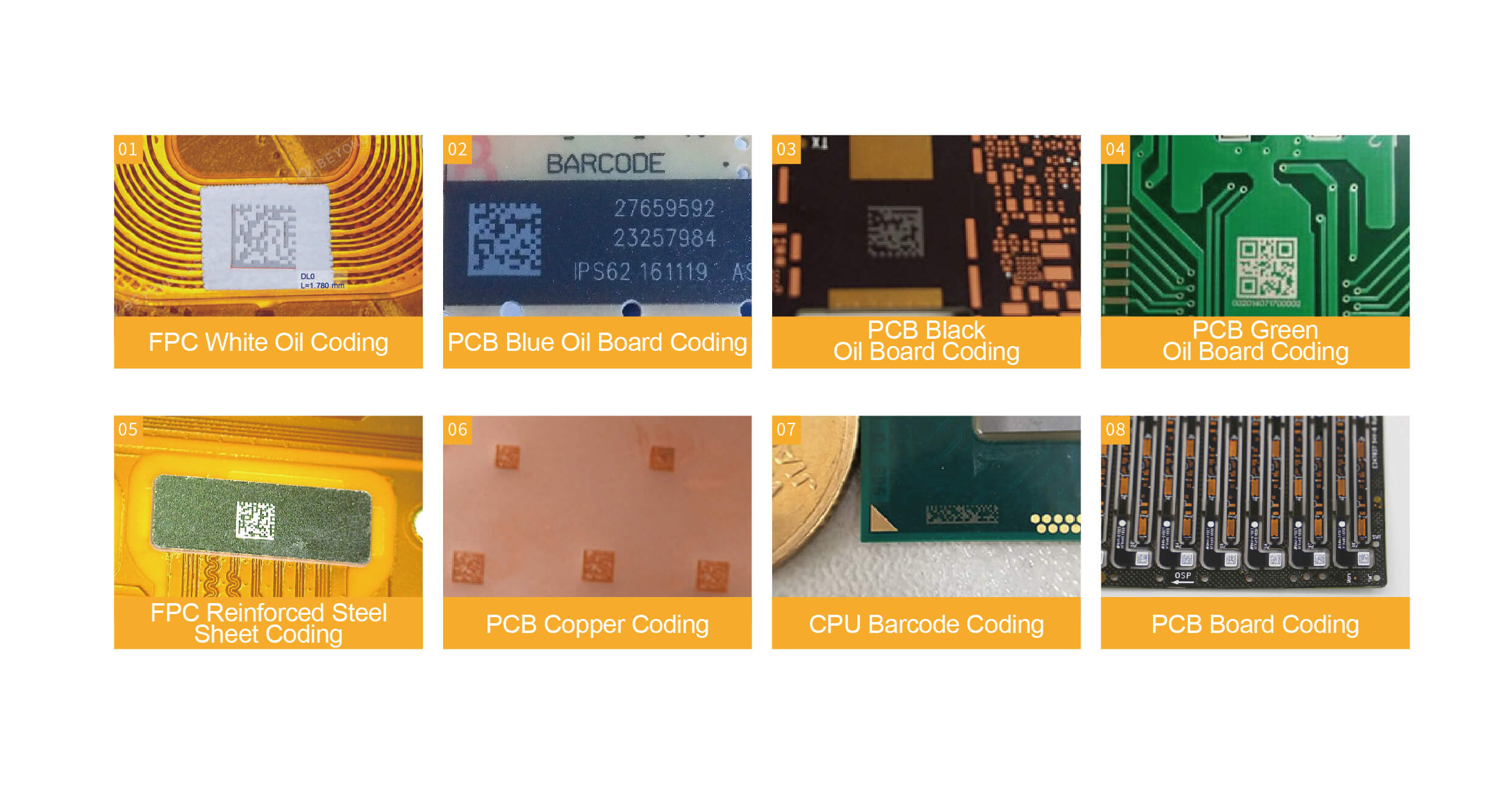

Mainly used in PCB, FPCB and other industries, it is mainly used to automatically mark two-dimensional code on the surface of PCB/FPCB,SMT(select the corresponding model according to different format). It can automatically mark two-dimensional code, one-dimensional code and characters on various inks such as white oil, green oil, black oil and copper, stainless steel, aluminum alloy and other surfaces.
