Error Checking machine

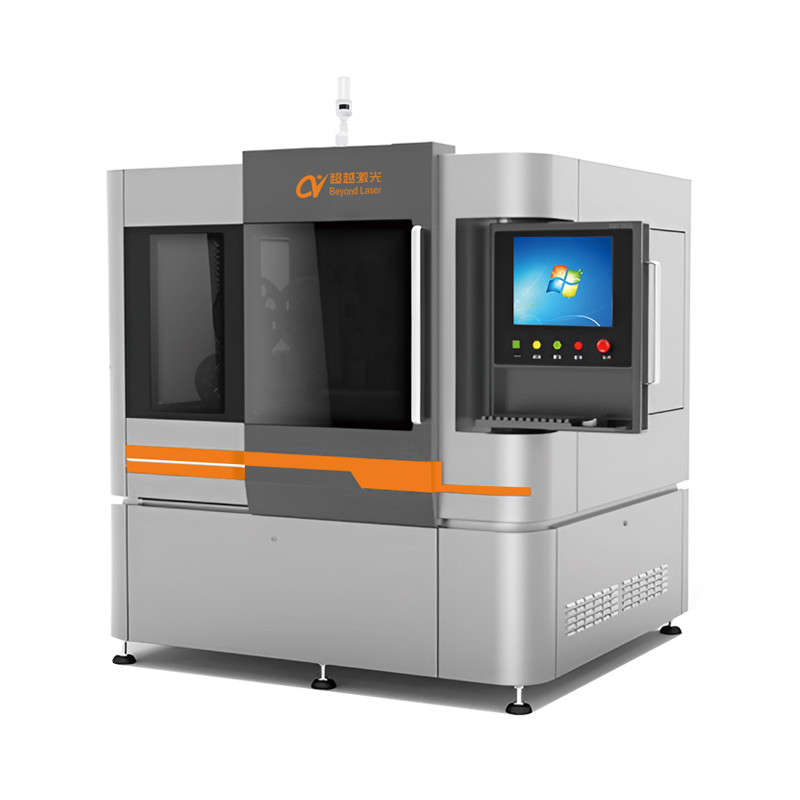

Laser X-marking Machine has self-developed visual software, the entire interface operation process is simple and easy to understand, and the fast reading meets the needs of the site.
It uses imported water-cooled lasers, which are more stable, and high-resolution 2D code scanning can be used for real-time coding and reading for carrier board.
Advantage:
1. Precise CCD Positioning
Using imported high-definition and high-speed cameras to ensure the image acquisition effect, high-resolution 2D code scanning, real-time coding and reading, and precise positioning and processing.
2. Self-developed Visual Software
Completely independently developed, customizable operation interface, the entire interface operation process is simple and easy to understand and fast reading.
3. Imported Water-cooled Laser
The imported laser is more stable, and the optical focus can be adjusted according to different materials. The beam quality is high, the focus spot is small, the power distribution is uniform,and the thermal effect is small.
Item | Specification | Item | Specification |
Undistorted engraving area | 160×160(mm) | Camera pixel accuracy | 8μm |
Line width | 0.04～0.08(mm) | Light source type | Red and blue dual-color light source |
Minimum character height | 0.35mm | Field of view | 120mm |
Printing depth | 0.005～0.035(mm) | Camera type | 16K line scan camera |
Excess thickness range | 0.1-2(mm) | Photographing method | Motion photography |
Laser repeatability printing accuracy | ±0.005mm | Adsorption method | Vacuum adsorption + clamping |
Seal array accuracy | ＜±0.025mm | Transportation method | Linear motor X-axis / lifting Z-axis collaborative work |
Laser light source | Green Laser | Fixed/working method | Top fixed/dual vision collaborative work |
Environmental temperature | 20℃～25℃ | Dust collection method | External negative pressure dust collection control |
Environmental humidity | 40%～60% | X1, X2 travel | 1160mm |
Reference distance | AC380V 50Hz | X1, X2 axis maximum acceleration | 1G |
Power | 15KW | Z1, Z2 axis lifting range | 0~50mm |
Compressed air | 0.6～0.8MPa | Z1, Z2 axis repeated positioning accuracy | ±10μm |
Dust extraction | φ75mm interface | Environmental smoke | Class6 (ISO) above |
Vibration source | VC-B |

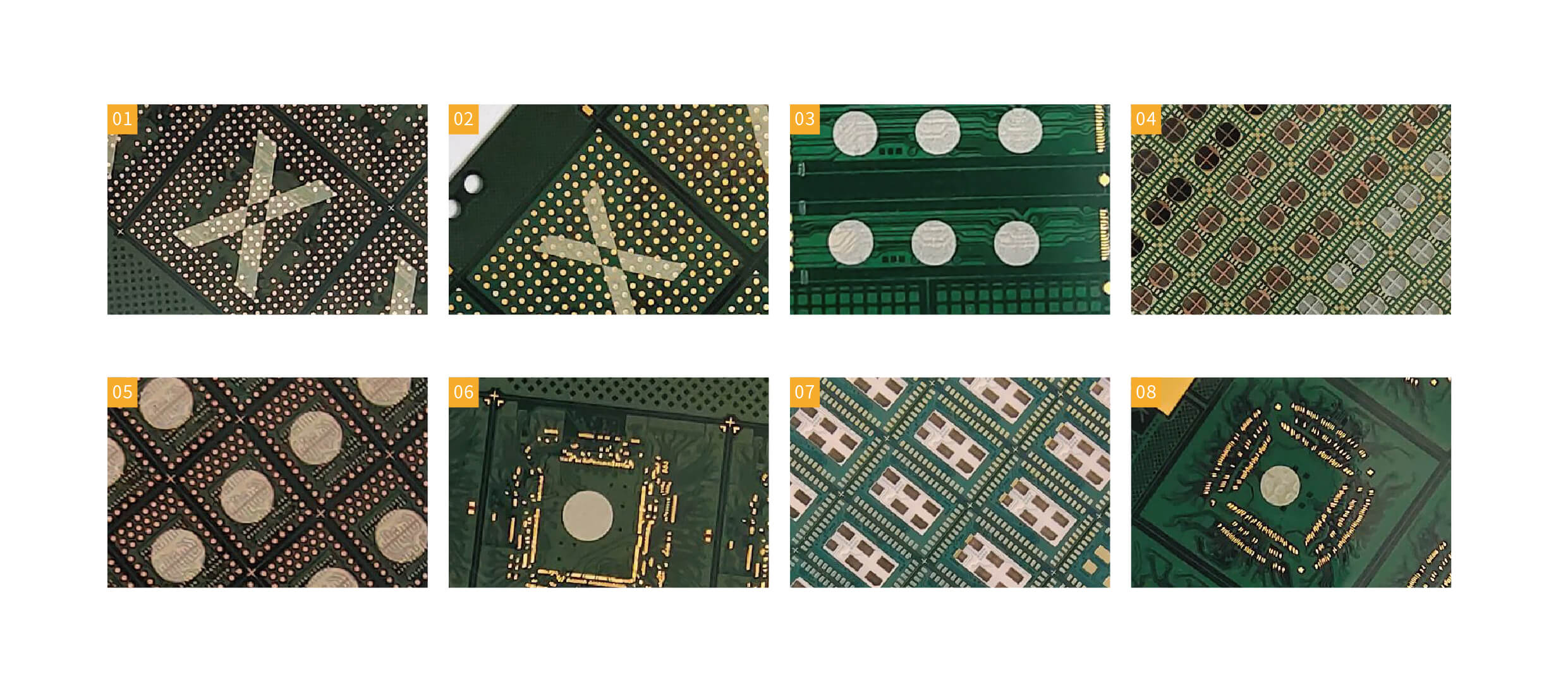

It is suitable for marking abnormal particles in finished products and carrier board in the PCB industry. A special mark is placed at a specific position of the plastic-sealed UNIT to identify the defective particles, which is convenient for subsequent classification and customer identification.
