Laser cutting applications for medical implant chips
Medical devices are related to human life safety and play an important role in human life.
The processing and manufacturing technology of medical devices in China is severely restricted by international cutting-edge technology companies.
It was not until the application of high-precision laser micromachining that the manufacturing quality of medical devices was greatly improved, the sales volume of medical devices was increased, and the development of the medical industry was accelerated.
The production process of medical implant chips is very complex, the precision requirements are extremely high, and the entry threshold is high.
At present, microfluidic chips have been widely used because they integrate the basic operating units of sample preparation, reaction, separation, and detection in the biological, chemical, and medical analysis processes into a micrometer-scale chip for automatic analysis.
Due to its huge potential in the fields of biology, chemistry, and medicine, it has developed into a new research field that intersects biology, chemistry, medicine, fluids, electronics, materials, and mechanics.

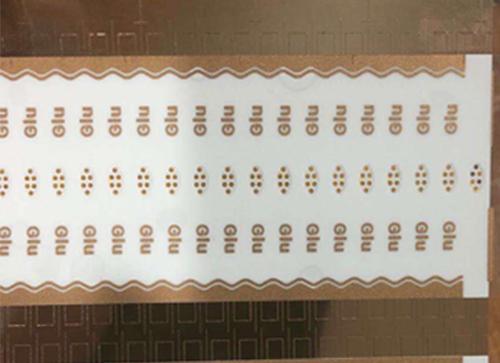

Some micro channels in medical electronic chips need to be processed by laser cutting.
However, when laser cutting the film of the microfluidic chip, there is a common phenomenon of serious carbonization of the channel edge and bulges, which affects the assembly and detection accuracy of the microfluidic chip.
Therefore, the laser micromachining system for medical equipment has formed an autonomous system solution with key functions, standard special machines, automation systems, and supporting services as its processing accuracy and stability.
Beyond Laser's laser cutting machine has many advantages. listed as the following 7 points:
(1) Good cutting quality. Due to the small laser spot, high energy density and fast cutting speed, laser cutting can achieve better cutting quality;
(2) Fast cutting speed, very high picosecond repetition frequency and fast galvanometer speed;
(3) The cutting surface is smooth and beautiful, and can even be used as the last processing step. No mechanical processing is required, and the parts can be used directly;
(4) After the material is laser cut, the width of the heat-affected zone is very small, and the performance of the material near the cut is almost unaffected. In addition, the workpiece is deformed and the cutting accuracy is high;
(5) The laser cutting incision is narrow, the two sides of the cut are parallel and have good perpendicularity to the surface;
(6) Non-contact cutting. During laser cutting, the nozzle does not contact the workpiece, and there is no tool wear.
(7) There are many processing materials, which is suitable for processing various materials.
Laser cutting, as the most accurate cutting method at present, has greatly promoted the development of medical devices.
Due to its high processing accuracy, fast speed, non-contact cutting, flexible processing and other characteristics, laser cutting machines have become a commonly used tool in the medical device industry.
-
What are the precautions for operating a laser marking machine?
1. It is strictly prohibited to start the laser power supply and Q-switching power supply when there is no water or the water circulation is abnormal.
2. The Q power supply is not allowed to operate without load (i.e., the output terminal of the Q power supply should be left floating).
3. In case of any abnormal phenomenon, first turn off the galvanometer switch and the key switch, and then conduct a check.
4. It is not allowed to start other components before the krypton lamp is lit to prevent high voltage from entering and damaging the components.
5. Pay attention to leaving the output terminal (anode) of the laser power supply suspended to prevent sparking and breakdown with other electrical appliances.
6. Keep the internal circulating water clean. Regularly clean the water tank and replace it with clean deionized water or pure water.
-
What should we do when laser intensity decreases and the marking is not clear enough?
1. Turn off the machine and check if the laser resonant cavity has changed; Fine-tune the resonant cavity lens. Make the output light spot the best;
2. The acousto-optic crystal is offset or the output energy of the acousto-optic power supply is too low;
Adjust the position of the audio-visual crystal or increase the working current of the audio-visual power supply;
3. The laser entering the galvanometer deviates from the center: Adjust the laser;
4. If the current is adjusted to around 20A but the light sensitivity is still insufficient: the krypton lamp is aging. Replace it with a new one.
-
How to maintain a UV laser cutting machine?
1. It is required to carry out regular cleaning every day, remove debris from the countertop, limiters and guide rails, and spray lubricating oil on the guide rails
2. The waste materials in the collection box should be cleared regularly to prevent excessive waste from blocking the exhaust port.
3. Clean the chiller once every 15 days, drain all the internal water, and then fill it with fresh pure water.
4. The reflector and focusing lens should be wiped with a special cleaning solution every 6 to 8 hours.
When wiping, use a cotton swab or cotton swab dipped in the cleaning solution to wipe from the center to the edge of the focusing lens in a counterclockwise direction.
At the same time, be careful not to scratch the lens.
5. The indoor environment can affect the lifespan of the machine, especially in damp and dusty conditions.
A damp environment is prone to causing rust on the reflective lenses and also easily leading to short circuits, discharge and sparking of the velvet laser.
-
What accidents might be caused by the laser emission when using a laser cutting machine?
(1) A fire was caused by the laser coming into contact with flammable materials.
Everyone knows that the power of laser generators is very high, especially when it comes to high-power laser cutting machines, the temperature of the emitted laser is extremely high. The possibility of a fire being caused when a laser beam comes into contact with flammable objects is very high.
(2) Harmful gases may be produced when the machine is in operation.
For instance, when cutting with oxygen, it undergoes a chemical reaction with the cutting material, generating unknown chemical substances or fine particles and other impurities. After being absorbed by the human body, it may cause allergic reactions or discomfort in the lungs and other respiratory tracts. Protective measures should be taken when conducting work.
(3) Direct laser exposure to the human body can be harmful.
The damage caused by lasers to the human body mainly includes damage to the eyes and skin. Among the harms caused by lasers, the damage to the eyes is the most severe. Moreover, damage to the eyes is permanent. So when doing homework, you must pay attention to protecting your eyes.
-
What is the focused spot diameter of nanosecond, picosecond and femtosecond laser?
Nanosecond: The light spot is 0.5-1mm.
Picosecond: The focused spot is around 0.02mm.
Femtosecond: Under the action of a laser beam with a high repetition rate of 100-200KHz and a very short pulse width of 10ps,
the focused spot diameter is as small as 0.003mm.
-
What are the main applications of UV laser cutting machine?
The UV laser cutting machine can be used for cutting and depaneling PCB.
It can precisely cut and shape various types of PCB circuit boards with V-CUT and stamp holes, and open Windows and covers.
It can also be used for separating packaged circuit boards and ordinary smooth boards.
It is suitable for cutting various types of PCB substrates, such as ceramic substrates, rigid-flex boards, FR4, PCBs, FPCs, fingerprint recognition modules, cover films, composite materials, copper substrates, aluminum substrates, etc.
-
Precautions for laser cutting machines to process various metal materials?
Copper and brass:
Both materials have high reflectivity and excellent thermal conductivity.
Brass with a thickness of less than 1mm can be processed by nitrogen laser cutting.
Copper with a thickness of less than 2mm can be cut. The gas used for laser cutting processing must be oxygen.
Copper and brass can only be cut when a "reflective absorption" device is installed on the system. Otherwise, reflection will damage the optical components.
Synthetic materials:
Processable synthetic materials include: thermoplastics, thermosetting materials and artificial rubber.
Aluminum:
Despite its high reflectivity and thermal conductivity, aluminum materials with a thickness of less than 6mm can be cut, depending on the type of alloy and the capacity of the laser.
When cutting with oxygen, the cutting surface is rough and hard.
When nitrogen is used, the cutting surface is smooth.
Pure aluminum is extremely difficult to cut due to its high purity.
Only when a "reflection and absorption" device is installed on the fiber laser cutting machine system can aluminum materials be cut.
Otherwise, reflection will damage the optical components
-
What should be paid attention to when laser cutting stainless steel?
Laser cutting processing of stainless steel requires the use of oxygen, under the condition that edge oxidation is not a concern.
If nitrogen is used to achieve an edge free of oxidation and burrs, no further processing is required.
Coating an oil film on the surface of the sheet will achieve a better perforation effect without reducing the processing quality.
