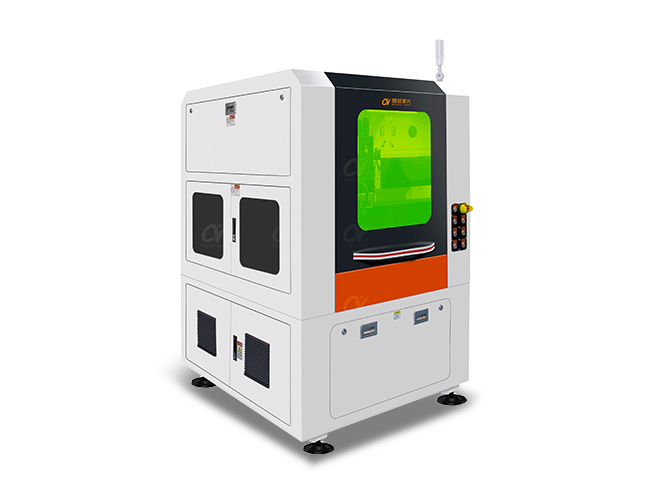

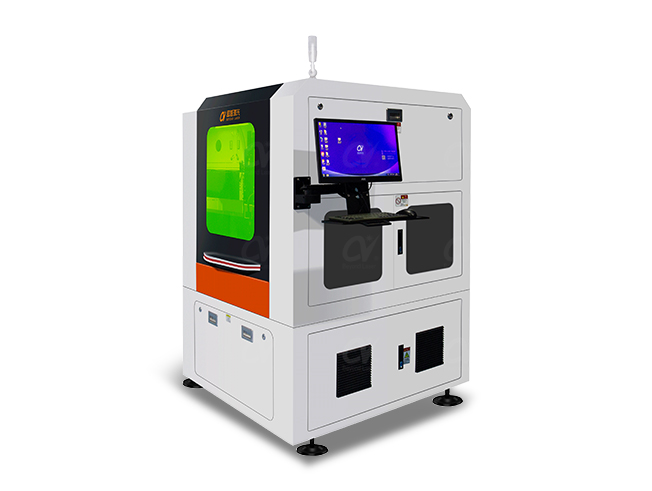

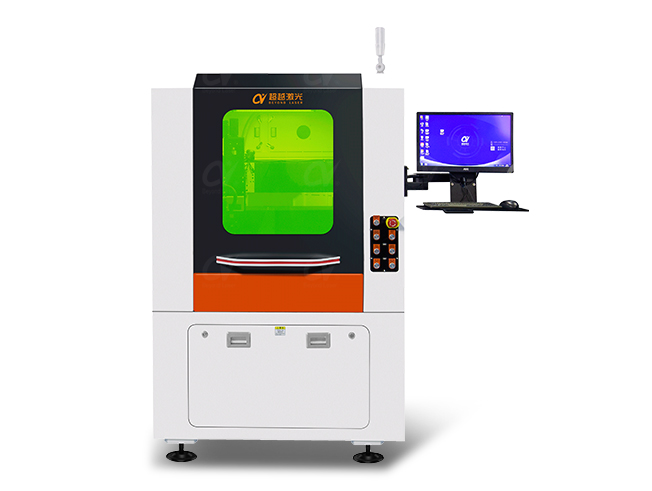

Multi-function laser cutting machine- 4030
The 4030 Multifunction Laser Cutting Machine is a specialized model designed for medical applications, scientific research, materials laboratories, and small-format, high-precision tasks.
Equipped with a vacuum working table, it ensures user-friendly operation.
Primarily used for fine cutting of various materials, the machine also enables micro-drilling and ultrafast laser ablation.
Its dual-sided dust removal system (top and bottom of the worktable) maintains a clean processing platform.
Features such as galvanometer automatic correction, automatic focusing, automatic alignment, and one-key operation achieve full-process automation.
Optional configurations include roll-to-roll and roll-to-sheet/piece processing.
The system is compatible with both picosecond and nanosecond laser technologies.
Laser sources can be UV laser, green laser, CO₂ laser, or fiber laser.
-
Superior Cutting Edge Quality High-power single-pulse and high-frequency cutting technology ensure smooth, clean edges with no burrs or residue.
-
Exceptional Beam Quality Solid-state laser delivers fine beam quality, a precise laser spot, uniform power distribution, and minimal thermal impact.
-
User-Friendly Operation Featuring a self-developed Windows-based control system, linear motors, a CCD vision positioning system, and one-key operation, the machine achieves micron-level accuracy.
Item | Specification | Item | Specification |

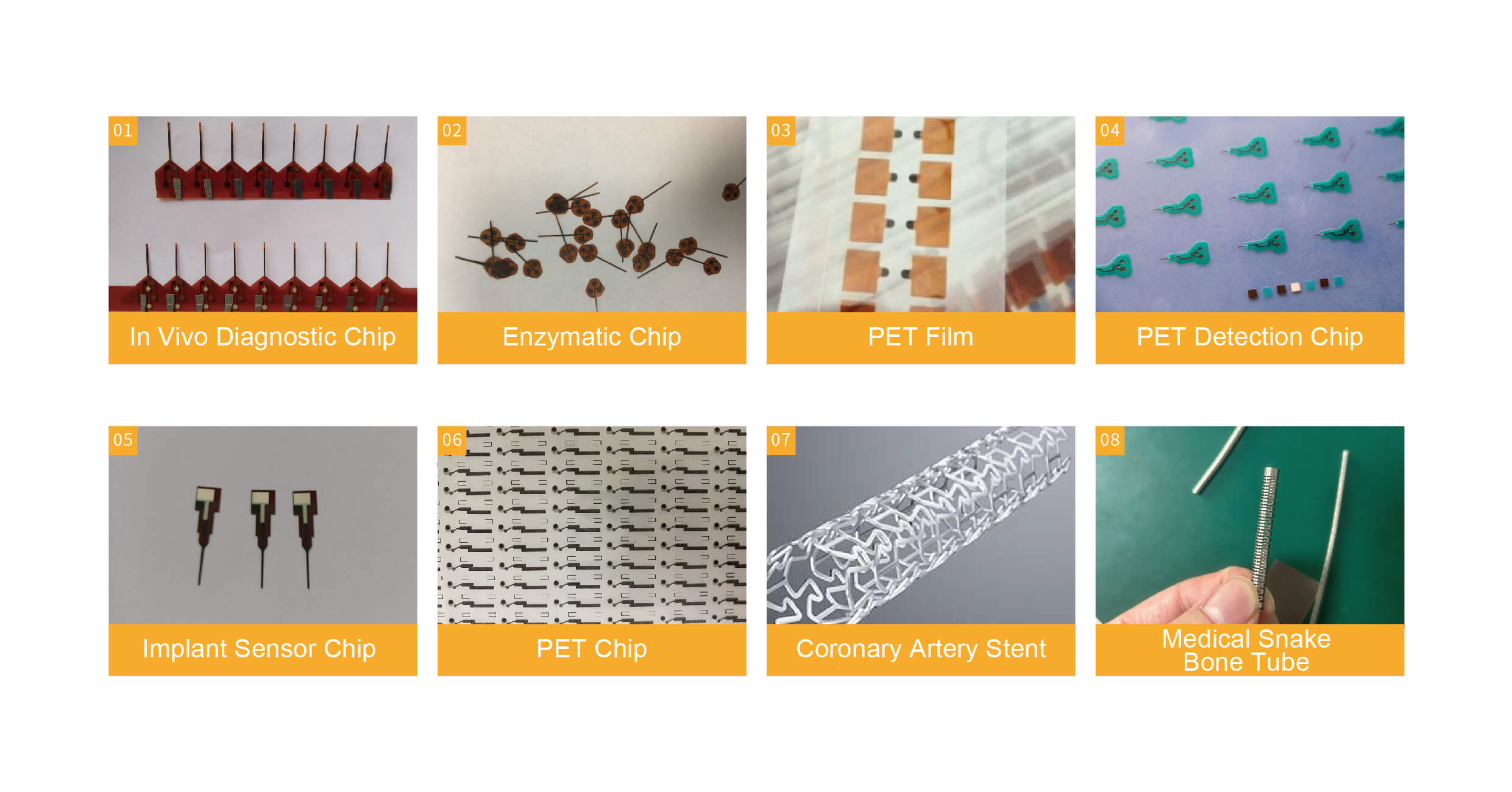

Applicable products | Medical chip, FPC profile, FPC auxiliary, PFT, PI film, ceramic, coverlay, etc. | Cutting efficiency | 800mm-7000mm/s |
Depend on materials and processing requirement | |||
Operation mode | Single platform | CCD | 1 unit |
Machine size | L1200mm*1350mm*1750mm | CCD positioning accuracy | ± 5μm |
Net weight | 1500kg | Laser spot | 10-25 μm |
Working area | 400*300mm | Memory capacity | 500g |
Total accuracy | ± 20μm | Exhaust pipe diameter | 50mm |
Linear motor repetitive positioning accuracy | ± 2μm | Air pressure | ≥ 0.6Mpa |
Linear motor positioning accuracy | ± 3μm | Cooling way | Constant-temperature chiller |
Stitching accuracy | ± 10μm | Environmental temperature | 18-26℃ |
Laser power | 30W | 45-65%RH | |
Galvanometer scanning range | 50× 50mm | Ground pressure | 600kg/m² |
Compensate for expansion and contraction | ≤ 1% | Electric power supply | 7.5KW/ 380V/ 50-60HZ |
Output pulse width | 15ps | Laser pulse frequency | 300KHz-2MHz |
Cutting line width | 25± 5μm |
The laser cutter is mainly used for cutting viariety of thin film, CVL, PET film, PI film, PP film, adhesive film, copper foil, explosion-proof film, electromagnetic film, SONY adhesive film, fpc, etc.
