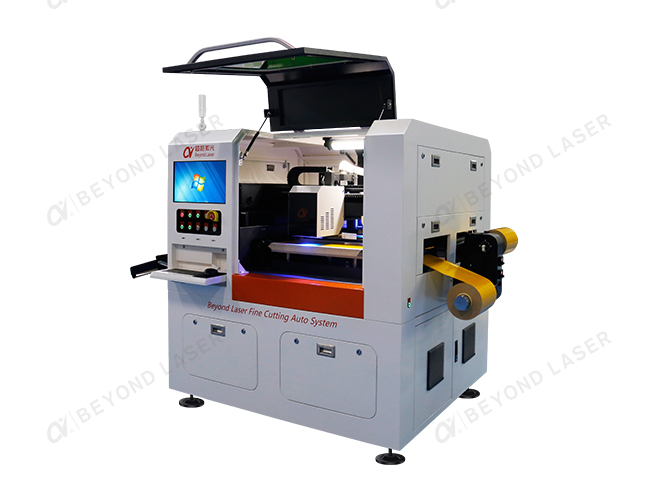

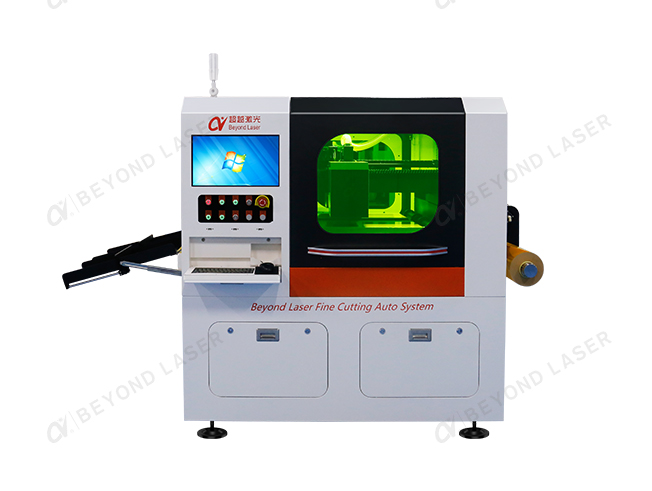

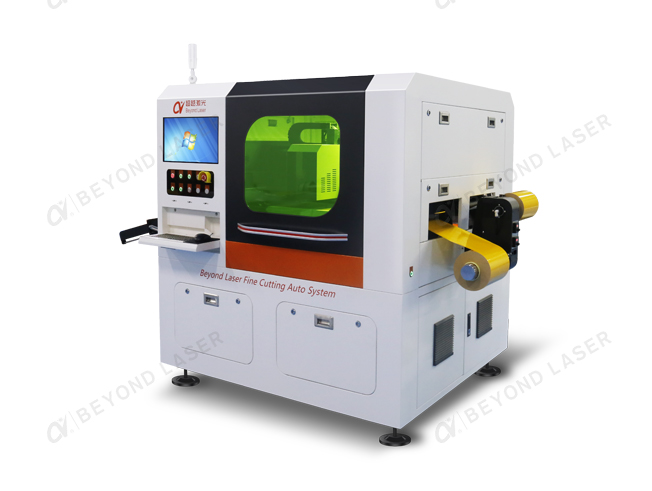

Coverlay laser cutting machine- 6050
The coverlay laser cutting machine is mainly used for processing 300mm and 500mm width roll film materials, with comprehensive automation system.
One key acheive automtic processing from loading to cutting and unloading.
Twin working table design with double efficiency, also with the function of automatic counting and model conversing, further upgrade the processing quality management.
Carry on 10 years of professional experience, help the customer fully solve the key problem of operation, cost control, quality assurance, efficiency improvement during their manufacturing and processing.
Roll to roll, roll to sheet/ piece is optional.
Pico second, nano second is compatible.
The industry laser resource of the laser cutter can be UV laser, green laser, co2 laser and fiber laser.
-
Automatic Loading Device
Automation design, roll type automatic loading, no manual, save labor and time cost, higher efficiency. -

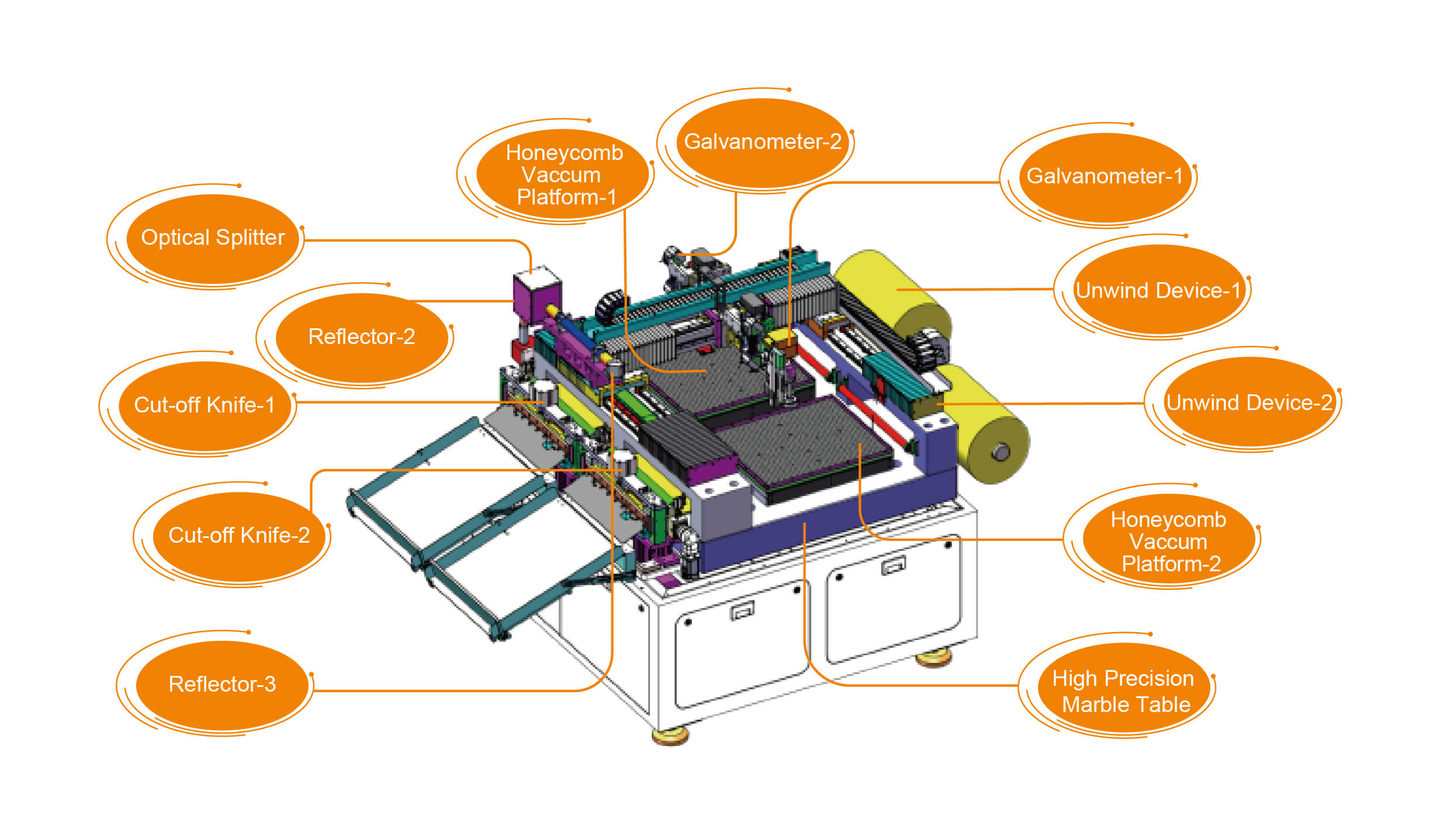

Dual Laser Head Double Platform Design
Single laser with optical splitter, to support double processing platform working simultaneously, laser power concentration, higher efficiency, better cutting effect. -
Automatic Unloading Device
Automatic cutting into sheets after processing, tray device automtic collecting, automtic accouting, convenient and efficent.
Item | Specification | Item | Specification |
Applicable products | CVL, FPC, RF, thin multi-layer | Output pulse width | Pico UV/Green laser: ≤15ps |
Machine size | L1960xW1350xH1700(mm) | Nano UV: 10-40ns | |
Net weight | 2200kg | Wavelength | Pico/Nano UV laser: 355nm |
Max.Processing size | 600*300(mm)Double platforms | Pico green laser: 532nm | |
Total process accuracy | ±25μm | Electric power supply | 380V 50-60HZ/9KW |
Repetitive positioning Accuracy of linear motor | ±2μm | Environmental Temperature | 23°C±2℃ (Non-condensing) |
Positioning accuracy of linear motor | ±3μm(after compensation) | Cutting line width | 25±5μm |
Laser power | UV nanosecond: 15W/20W/25W | Cutting efficiency | 800mm-7000mm/s |
UV picosecond: 30W | (different efficiency for different materials) | ||
Green laser picosecond: 30W/60W | Memory capacity | 500G | |
Galvanometer scanning range | ≤ 50*50mm | Exhaust pipe diameter | 50mm |
Air pressure | Pressure≥ 0.6MPa | ||
Laser pulse frequency | Nanosecond: 50-300KHZ | Cooling way | Chiller |
Picosecond: 300-2000KHZ | CCD | 2 Units | |
Compensate for expansion and contraction | ≤ 1% | CCD scan range | 4.6x3.2mm |
Stitching cutting function | Yes | CCD positioning accuracy | ± 5μm |
Stitching accuracy | ≤ 10μm | Laser spots | 10-25 μm |

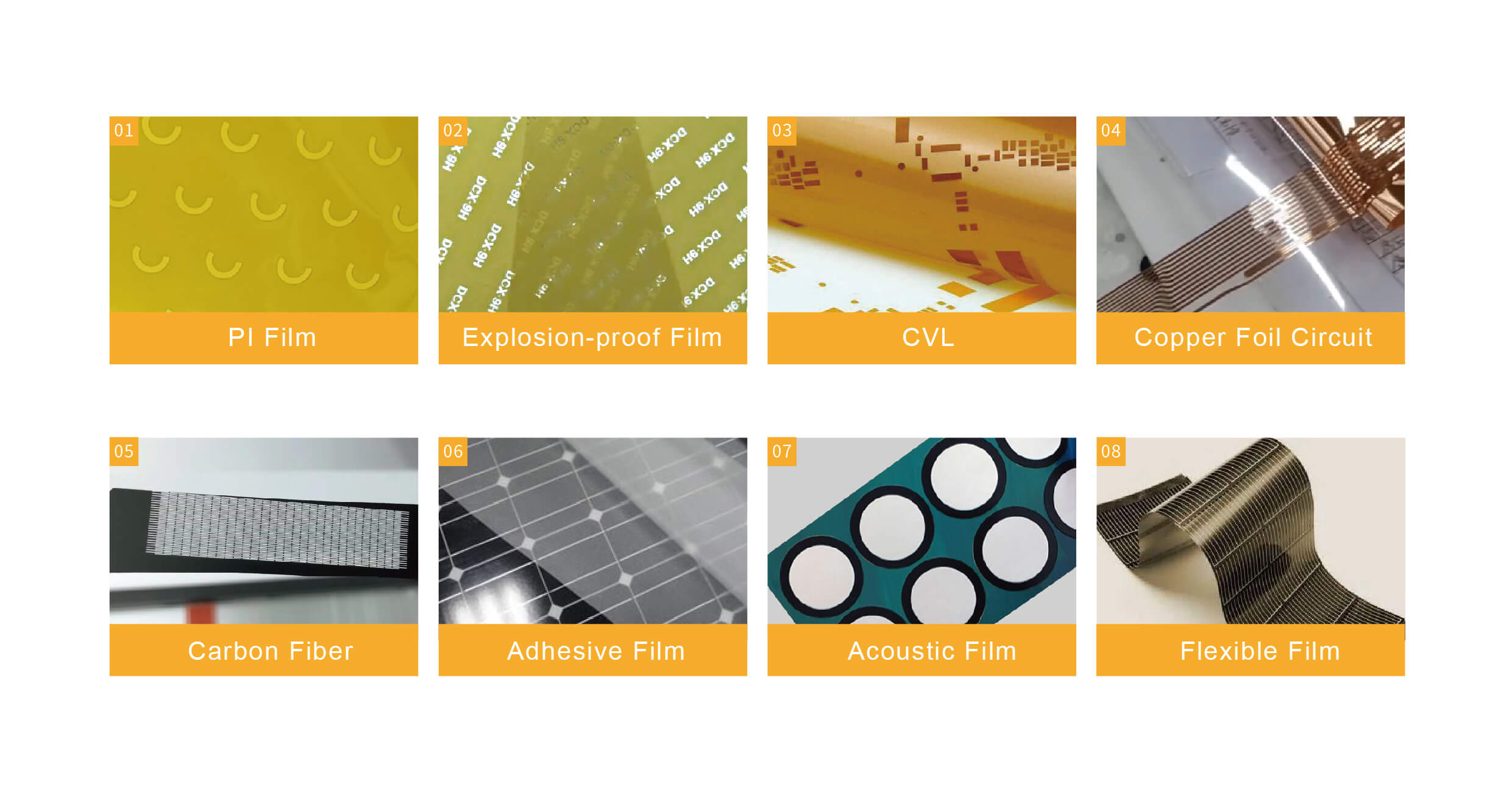

The laser cutter is mainly used for cutting various thin films, such as CVL(coverlay), PET film, PI film, PP film, adhesive film, copper foil, explosion-proof film, electromagnetic film, SONY adhesive film, FPC (Flexible Printed Circuit), etc.
