FPC laser cutting machine- 6555
Dual Laser Heads, Dual Positioning
Dual Laser Heads, Dual Systems
Compatible with picosecond and nanosecond laser technologies.
Supports multiple laser sources: 355nm UV laser, 532nm green laser, CO₂ laser, and fiber laser.

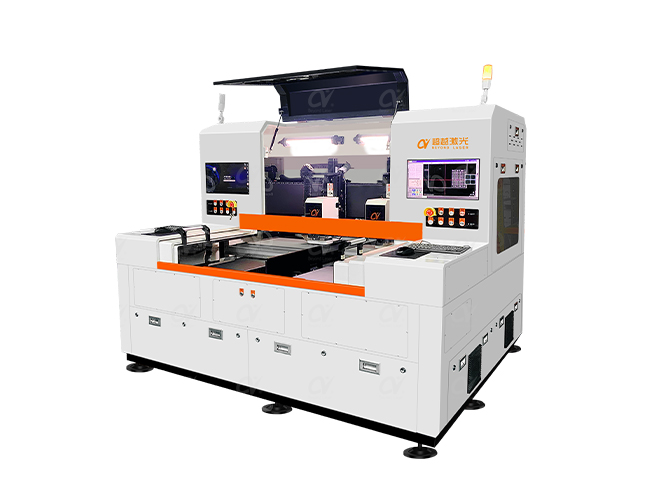

Single Laser Head, Dual Platforms
Two platforms operate in a cyclic sequence with zero preparation time, maximizing processing efficiency.
The large 650×550mm working area per platform accommodates oversized materials and supports both cover film and contour cutting applications.

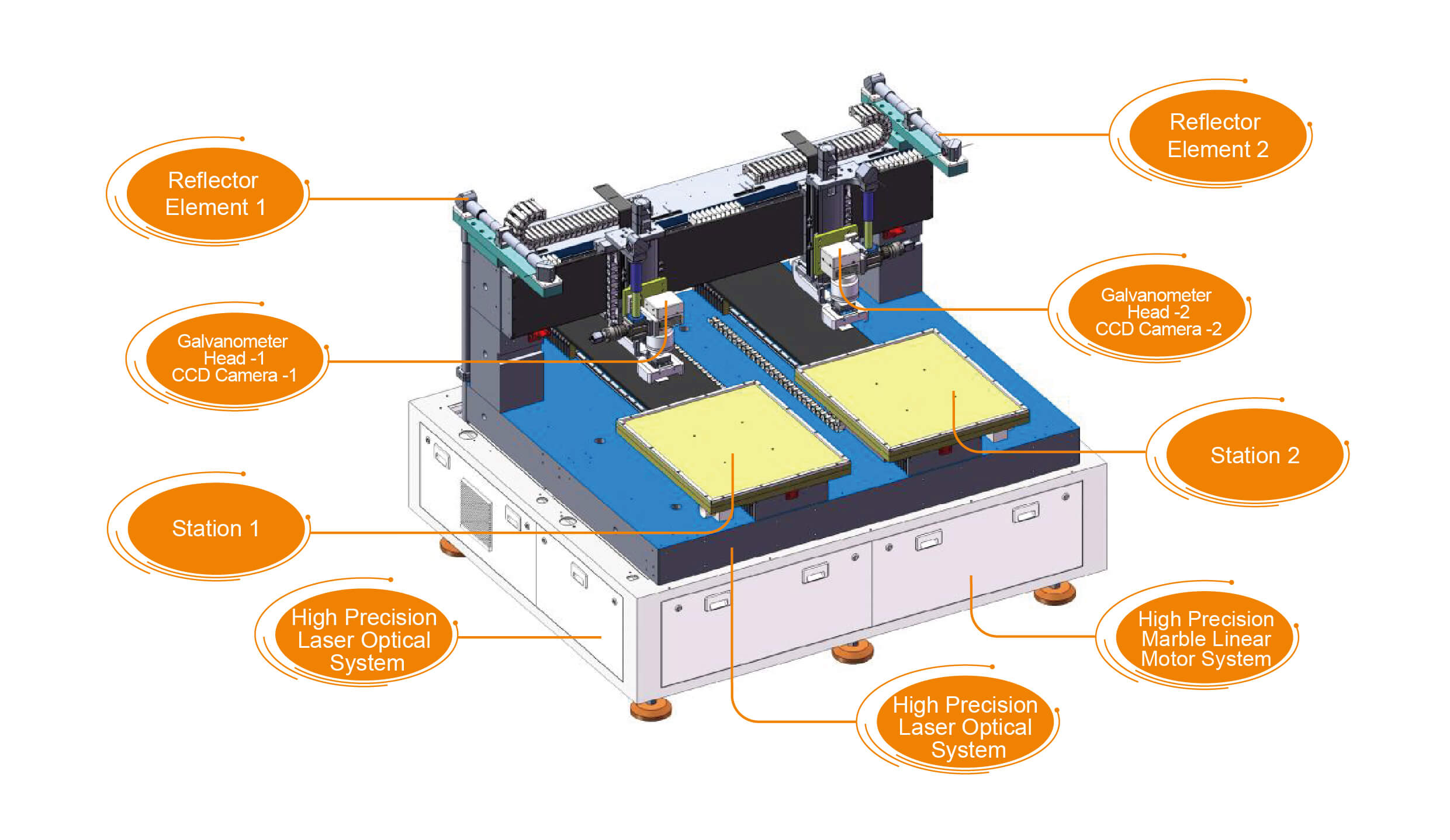

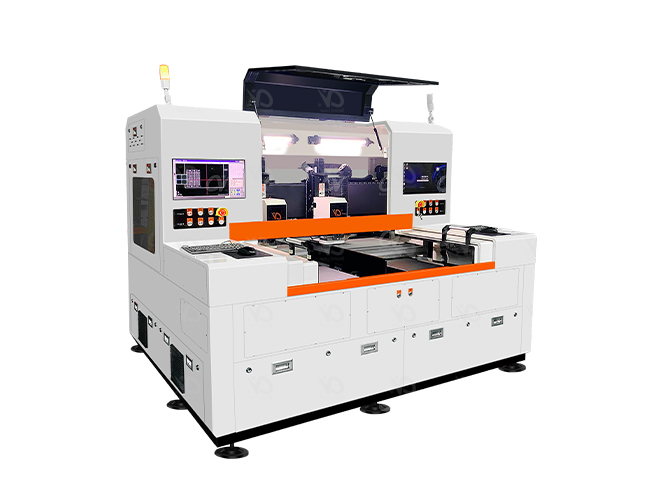

Dual Laser Heads, Dual Positioning
Dual laser heads and platforms enable parallel processing, doubling output for identical material/contour cutting.
Independent fiducial mark positioning ensures accuracy.
Intelligent beam splitting from a single laser source delivers dual-beam performance with reduced maintenance requirements.
Each platform provides a 650×550mm processing area.

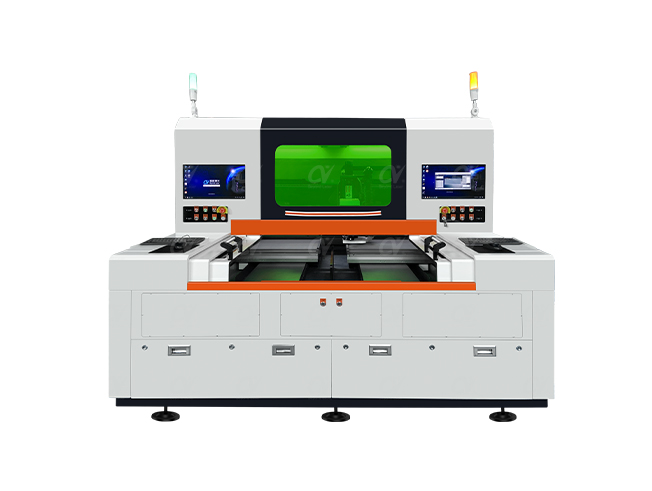

Dual Laser Heads, Dual Systems
Dual laser heads on separate platforms work in sync, offering versatile compatibility for cutting different material types.
With dual laser systems and dedicated operation interfaces, the dual laser sources generate parallel beams for simultaneous processing on two 650×550mm platforms, optimized for large-format materials.
-
Single Laser Head, Double Platforms
-
Double Laser Heads, Double Positioning
-
Double Laser Heads, Double Systems
ltem | Specification | ltem | Specification |
Applicable products | CVL, FPC, RF, thin multi-layer | Wavelength | Pico UV: 355nm UV laser |
Operation model | Single laser, single laser head, dual platforms | Pico green laser: 532nm green laser | |
Machine size | L2150*W1750*H1800mm | Cutting line width | 25±5μm |
(For reference only, subject to our available product) | Cutting efficiency | 800mm- 7000mm/s | |
Machine weight | 3000kg | (Depend on materials and processing requirement) | |
Processing area | 650*550mm *2 | CCD | 2 Units |
Total process accuracy | ± 25μm | CCD positioning accuracy | ± 5μm |
Repetitive positioning Accuracy of linear motor | ± 2μm | Light spot size | 10-25μm |
Positioning accuracy of linear motor | ± 3μm | Memory capacity | 500G |
Stitching accuracy | ± 10μm | Air pressure | ≥ 0.6MPa |
Splitting power accuracy | Double positioning: ±0.2W | Cooling way | Chiller |
Laser power | 30W | Environmental temperature | 23±2°C(Non-condensing) |
Galvanometer scan range | ≤ 50*50mm | Machine power | Single laser head dual platforms: 14KW/380V 50-60HZ |
Laser pulse frequency | 300kHz-2MHz | Double laser heads double positioning: 12KW/380V 50-60HZ | |
Compensate for expansion and contraction | ≤1% | Double laser heads double laser systems: 16KW/380V 50-60HZ | |
Output pulse width | ≤15ps | Laser power detection | Dynamometer |
Primarily designed for FPC (flexible printed circuit) cutting, supporting cover film, contour profiling, and materials including:

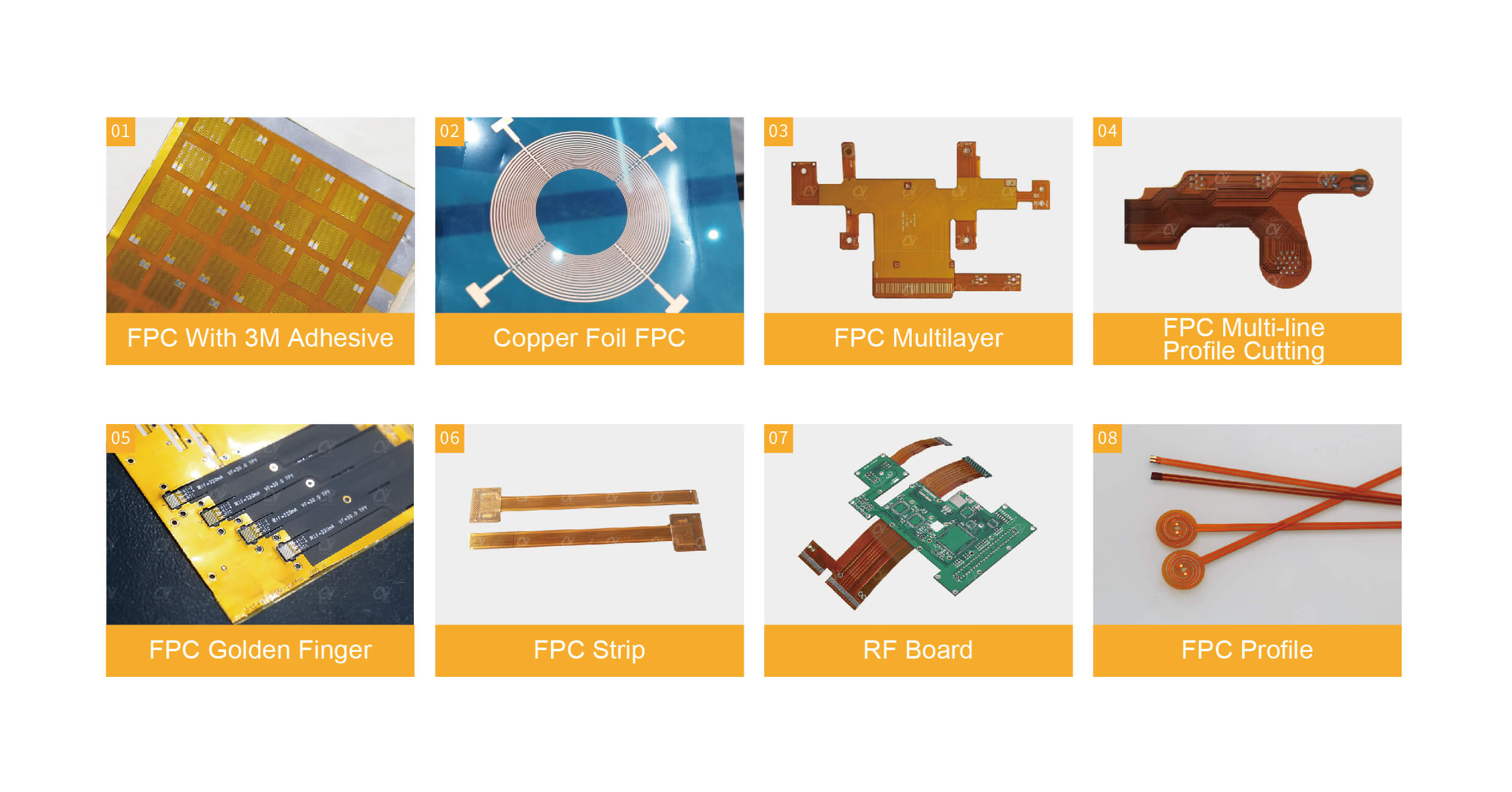

FPC with 3M adhesive, FPC stiffeners, Multi-layer FPC, Multi-line profile FPC, FPC golden fingers, FPC strips, Bendable FPC, Contoured FPC, High-density FPC.
