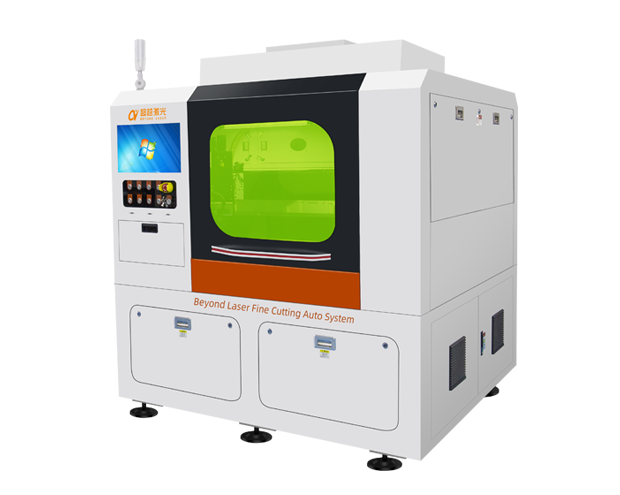

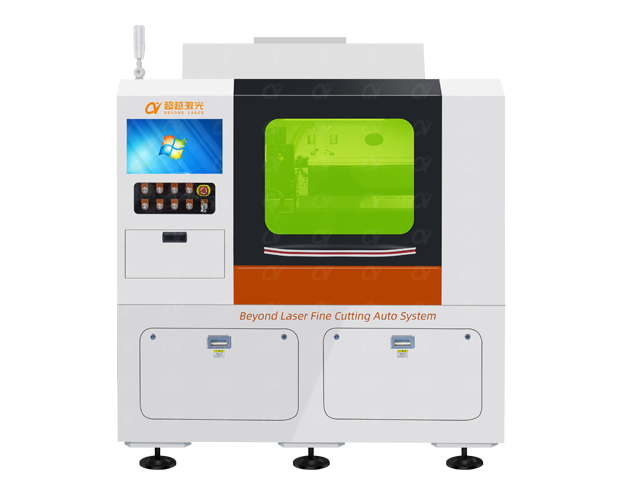

Large format laser cutting machine- 7060
This laser machine primarily designed for large-format PCB (printed circuit board) laser processing, contour cutting, and skiving.
Equipped with a powerful and fully automated system, it enables one-touch automatic processing from loading to cutting and unloading.
The twin working tables design doubles efficiency, while the functions of automatic counting and model conversion further enhance processing quality management.
With 10 years of professional expertise, it comprehensively addresses customers’ key challenges in operation, cost control, quality assurance, and efficiency improvement during manufacturing and processing.
Supports both picosecond and nanosecond laser sources, including UV laser, green laser, CO₂ laser, and fiber laser.
-
Automatic Loading Device
Automation design, roll type automatic loading, no manual, save labor and time cost, higher efficiency. -

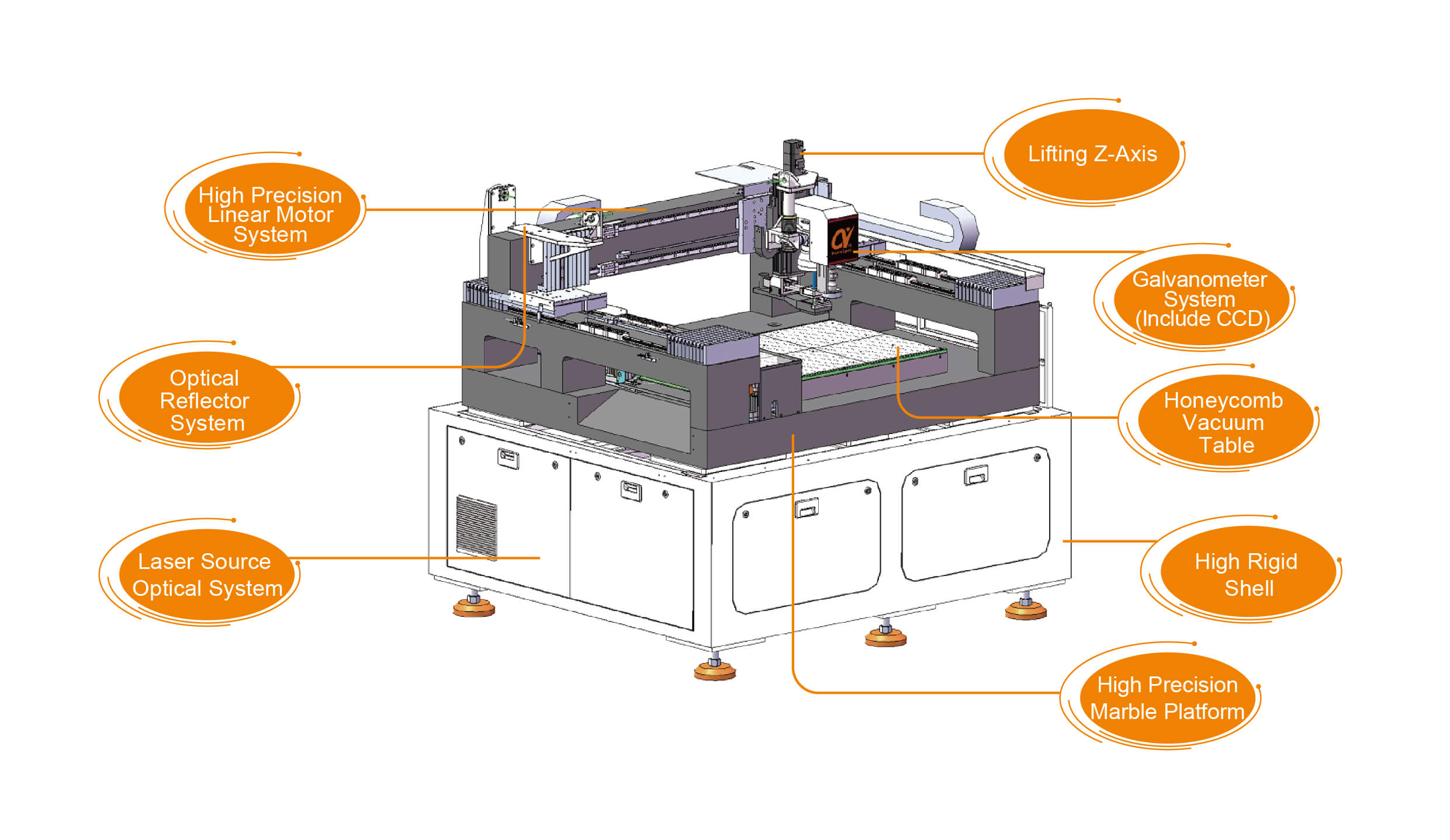

Dual Laser Head Double Platform Design
Single laser with optical splitter, to support double processing platform working simultaneously, laser power concentration, higher efficiency, better cutting effect. -
Automatic Unloading Device
Automatic cutting into sheets after processing, tray device automtic collecting, automtic accouting, convenient and efficent.
Item | Specification | Item | Specification |
Applicable products | CVL, FPC, RF, thin multi board | Wavelength | Pico UV: 355nm |
Machine size | 1700x1550x1750mm | Green Laser: 532nm | |
Net weight | 2200kg | Machine power | 8.5KW/380V 50-60HZ |
Maximum processing size | 700x600mm | Environmental temperature | 23℃±2°℃ Non-condensing |
Total accuracy | ± 25μm | Cutting line width | 25±5μm |
Repetitive positioning accuracy of linear motor | ± 2μm | Cutting efficiency | 800mm-7000mm/s |
Positioning accuracy of linear motor | ± 3μm | Memory capacity | 500G |
Laser power | 30W | Exhaust pipe diameter | 50mm |
Galvanometer scanning range | ≤ 50*50mm | Air pressure | ≥ 0.6MPa |
Laser pulse frequency | Nanosecond: 50-300KHZ | Cooling way | Chiller |
Pico: 300-2000KHZ | CCD | 1 Unit | |
Compensate for expansion and contraction | ≤ 1% | CCD positioning accuracy | ± 5μm |
Stitching function | Yes | Laser spot | 25-30μm |
Output pulse width | Pico UV/Pico Green Laser: ≤15ps UV nanosecond: 10-40ns | Splicing accuracy | ≤ 10μm |
Mainly used in PCB, FPCB, and other industries for cutting various films, such as CVL roll-to-sheet materials, PET film, PI film, PP film, adhesive film, copper foil, explosion-proof film, electromagnetic film, SONY adhesive film, etc.
