What is the difference between nanosecond, picosecond, and femtosecond lasers?
In recent years, laser equipment has been updated and upgraded faster and faster, and the domestic and foreign laser industries have ushered in a period of rapid development.
Nanosecond, picosecond, and femtosecond lasers have gradually become hot spots in the market.
Nanosecond lasers, picosecond lasers, and femtosecond lasers that are often heard, for the "new favorites" of the innovative laser equipment industry, can you tell them apart?
Nanoseconds, picoseconds, and femtoseconds in laser processing equipment refer to the time control units in the laser processing process.
Usually, laser processing is a single pulse energy acting on the surface of the material in a very short time, and through high-frequency repetitive work, drilling, cutting, marking, welding and other applications are formed.
At the same time, it is necessary to understand that 1 second = 109 nanoseconds = 1012 picoseconds = 1015 femtoseconds, so the nanosecond, picosecond, and femtosecond laser processing equipment often seen in the market are named based on time.
There are also various other factors such as single pulse energy, pulse width, pulse frequency, pulse peak power, etc.
According to the processing requirements of different materials, choose the corresponding nanosecond, picosecond, and femtosecond laser processing equipment.
The shorter the time, the shorter the time the laser acts on the material surface, the smaller the impact on the material surface, and the better the processing effect.
The following is the time unit conversion:
1ms (millisecond) = 0.001 second = 10-3 second
1μs (microsecond) = 0.000001 = 10-6 second
1ns (nanosecond) = 0.0000000001 second = 10-9 second
1ps (picosecond) = 0.0000000000001 second = 10-12 second
1fs (femtosecond) = 0.000000000000001 second = 10-15 second
Differences in commonly used processing materials
Under different processing conditions, the selected time unit is different, so there are naming rules for nanosecond, picosecond, and femtosecond laser equipment. For example, nanosecond UV laser cutting machines are often used for thin film material processing, picosecond UV laser cutting machines are often used for brittle material processing, and femtosecond UV laser cutting machines are used for conductive thin film oxide and other material processing (UV is named according to the wavelength rule, which is 355nm laser).

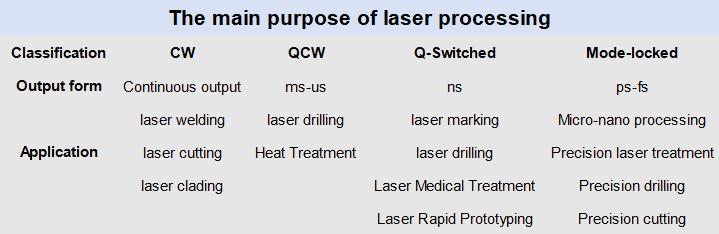

Differences in laser processing applications

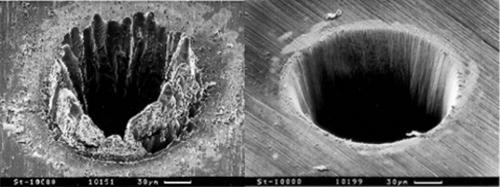

Drilling: Picosecond lasers are ideal for this application. Picosecond lasers can complete hole processing in the manner of impact drilling and ensure the uniformity of the holes. In addition to circuit boards, picosecond lasers can also perform high-quality drilling on materials such as plastic films, semiconductors, metal films and sapphire.
Line ablation (removal of coating): Another application that is often considered micromachining is the precise removal of coatings without damaging or slightly damaging the substrate material. Ablation can be either a line of a few microns wide or a large area of several square centimeters. Since the thickness of the coating is usually much smaller than the width of the ablation, the heat cannot be conducted to the side. Therefore, lasers with nanosecond pulse widths can be used.
Precision cutting: Femtosecond lasers can be used to cut a variety of substrates.
With the progress of technology, nanosecond, picosecond, femtosecond laser equipment is more and more well-known, and the application range is more and more extensive. Beyond Laser has professional, excellent picosecond, femtosecond laser equipment, stable performance, independent innovation and research and development, with high cost performance.
-
Sep 22, 2025Which equipment is best for laser cutting of various types of films such as PET, PI, FPC?
-
Sep 18, 2025Six major applications of ultrafast lasers in precision processing in the consumer electronics industry
-
Sep 10, 2025Laser cutting technology for microporous structure of vascular stent
-
What are the precautions for operating a laser marking machine?
1. It is strictly prohibited to start the laser power supply and Q-switching power supply when there is no water or the water circulation is abnormal.
2. The Q power supply is not allowed to operate without load (i.e., the output terminal of the Q power supply should be left floating).
3. In case of any abnormal phenomenon, first turn off the galvanometer switch and the key switch, and then conduct a check.
4. It is not allowed to start other components before the krypton lamp is lit to prevent high voltage from entering and damaging the components.
5. Pay attention to leaving the output terminal (anode) of the laser power supply suspended to prevent sparking and breakdown with other electrical appliances.
6. Keep the internal circulating water clean. Regularly clean the water tank and replace it with clean deionized water or pure water.
-
What should we do when laser intensity decreases and the marking is not clear enough?
1. Turn off the machine and check if the laser resonant cavity has changed; Fine-tune the resonant cavity lens. Make the output light spot the best;
2. The acousto-optic crystal is offset or the output energy of the acousto-optic power supply is too low;
Adjust the position of the audio-visual crystal or increase the working current of the audio-visual power supply;
3. The laser entering the galvanometer deviates from the center: Adjust the laser;
4. If the current is adjusted to around 20A but the light sensitivity is still insufficient: the krypton lamp is aging. Replace it with a new one.
-
How to maintain a UV laser cutting machine?
1. It is required to carry out regular cleaning every day, remove debris from the countertop, limiters and guide rails, and spray lubricating oil on the guide rails
2. The waste materials in the collection box should be cleared regularly to prevent excessive waste from blocking the exhaust port.
3. Clean the chiller once every 15 days, drain all the internal water, and then fill it with fresh pure water.
4. The reflector and focusing lens should be wiped with a special cleaning solution every 6 to 8 hours.
When wiping, use a cotton swab or cotton swab dipped in the cleaning solution to wipe from the center to the edge of the focusing lens in a counterclockwise direction.
At the same time, be careful not to scratch the lens.
5. The indoor environment can affect the lifespan of the machine, especially in damp and dusty conditions.
A damp environment is prone to causing rust on the reflective lenses and also easily leading to short circuits, discharge and sparking of the velvet laser.
-
What accidents might be caused by the laser emission when using a laser cutting machine?
(1) A fire was caused by the laser coming into contact with flammable materials.
Everyone knows that the power of laser generators is very high, especially when it comes to high-power laser cutting machines, the temperature of the emitted laser is extremely high. The possibility of a fire being caused when a laser beam comes into contact with flammable objects is very high.
(2) Harmful gases may be produced when the machine is in operation.
For instance, when cutting with oxygen, it undergoes a chemical reaction with the cutting material, generating unknown chemical substances or fine particles and other impurities. After being absorbed by the human body, it may cause allergic reactions or discomfort in the lungs and other respiratory tracts. Protective measures should be taken when conducting work.
(3) Direct laser exposure to the human body can be harmful.
The damage caused by lasers to the human body mainly includes damage to the eyes and skin. Among the harms caused by lasers, the damage to the eyes is the most severe. Moreover, damage to the eyes is permanent. So when doing homework, you must pay attention to protecting your eyes.
-
What is the focused spot diameter of nanosecond, picosecond and femtosecond laser?
Nanosecond: The light spot is 0.5-1mm.
Picosecond: The focused spot is around 0.02mm.
Femtosecond: Under the action of a laser beam with a high repetition rate of 100-200KHz and a very short pulse width of 10ps,
the focused spot diameter is as small as 0.003mm.
-
What are the main applications of UV laser cutting machine?
The UV laser cutting machine can be used for cutting and depaneling PCB.
It can precisely cut and shape various types of PCB circuit boards with V-CUT and stamp holes, and open Windows and covers.
It can also be used for separating packaged circuit boards and ordinary smooth boards.
It is suitable for cutting various types of PCB substrates, such as ceramic substrates, rigid-flex boards, FR4, PCBs, FPCs, fingerprint recognition modules, cover films, composite materials, copper substrates, aluminum substrates, etc.
-
Precautions for laser cutting machines to process various metal materials?
Copper and brass:
Both materials have high reflectivity and excellent thermal conductivity.
Brass with a thickness of less than 1mm can be processed by nitrogen laser cutting.
Copper with a thickness of less than 2mm can be cut. The gas used for laser cutting processing must be oxygen.
Copper and brass can only be cut when a "reflective absorption" device is installed on the system. Otherwise, reflection will damage the optical components.
Synthetic materials:
Processable synthetic materials include: thermoplastics, thermosetting materials and artificial rubber.
Aluminum:
Despite its high reflectivity and thermal conductivity, aluminum materials with a thickness of less than 6mm can be cut, depending on the type of alloy and the capacity of the laser.
When cutting with oxygen, the cutting surface is rough and hard.
When nitrogen is used, the cutting surface is smooth.
Pure aluminum is extremely difficult to cut due to its high purity.
Only when a "reflection and absorption" device is installed on the fiber laser cutting machine system can aluminum materials be cut.
Otherwise, reflection will damage the optical components
-
What should be paid attention to when laser cutting stainless steel?
Laser cutting processing of stainless steel requires the use of oxygen, under the condition that edge oxidation is not a concern.
If nitrogen is used to achieve an edge free of oxidation and burrs, no further processing is required.
Coating an oil film on the surface of the sheet will achieve a better perforation effect without reducing the processing quality.
